Vehicle Exploded View - PIAGGIO MP3 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

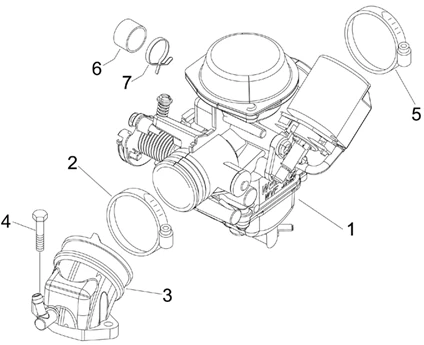

Moteur : 01.39 CARBURATEUR COMPLET - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1/MP3_125_2006-2008_01.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
2 |
1A000833 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/1/img/72711.jpg)
3 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 125 MP3 2007>, X-EVO 2007>, VESPA GTS 2007>/APRILIA 125-250 ATLANTIC 2006>, SPORT-CITY 2006> -B016578 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/2/5/img/70525.jpg)
3 |
INTAKE MANIFOLD "PIAGGIO GENUINE PART" 125 MP3 2007>, X8 2004>, X9 2007>, X-EVO 2007>, VESPA GTS 2007>, BEVERLY 2007>/GILERA 125 NEXUS 2007>, RUNNER 2005> -874415 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/2/img/68922.jpg)
4 |
SCREW - (M6 X 25) "PIAGGIO GENUINE PART" -830487 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/6/img/66046.jpg)
5 |
260918 - BRIDE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/0/img/69200.jpg)
6 |
AIR INTAKE "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER 125-250 CC -841695 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
7 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
