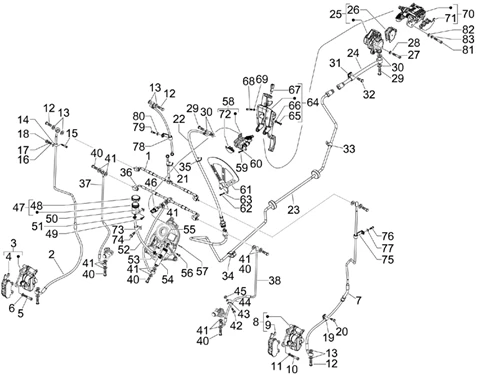

Vehicle Exploded View - PIAGGIO MP3 125 2006-2008

	P2R reference	82152
	Maker reference	58516R

58516R - TUYAU A FREIN

	P2R reference	174667
	Maker reference	1C005539

1C005539 - BRAKE HOSE RIGHT (LINK -BRAKE CALIPER)

	P2R reference	83041
	Maker reference	601742
	Replaced by référence 174667

FRONT BRAKE HOSE "PIAGGIO GENUINE PARTS" 125-250-300-350-400-500 MP3 -601742-

	P2R reference	95511
	Maker reference	CM065707

FRONT BRAKE CALIPER- RIGHT HENG-TONG "PIAGGIO GENUINE PART" 125-250-300-400-500-MP3/GILERA 500 FUOCO -CM065707

	P2R reference	68422
	Maker reference	666574

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2006> FRONT, 50-125 VESPA LX FRONT, 50-125 VESPA S FRONT, 50-125 LIBERTY FRONT, 50 NRG/GILERA 50 RUNNER REAR, 500 FUOCO REAR (PAIR) (GRIMECA) -666574

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150

	P2R reference	73681
	Maker reference	0069635

006963 - RONDELLE

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	83039
	Maker reference	601740
	Replaced by référence 174665

BRAKE HOSE- FRONT- LEFT "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -601740

	P2R reference	110679
	Maker reference	615795

615795 - VIS

	P2R reference	174665
	Maker reference	1C005540

1C005540 - BRAKE HOSE LEFT (LINK-BRAKE CALIPER)

	P2R reference	95512
	Maker reference	CM065708

FRONT BRAKE CALIPER- LEFT HENG-TONG "PIAGGIO GENUINE PART" 125-250-300-400-500-MP3/GILERA 500 FUOCO -CM065708

	P2R reference	68422
	Maker reference	666574

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2006> FRONT, 50-125 VESPA LX FRONT, 50-125 VESPA S FRONT, 50-125 LIBERTY FRONT, 50 NRG/GILERA 50 RUNNER REAR, 500 FUOCO REAR (PAIR) (GRIMECA) -666574

	P2R reference	67332
	Maker reference	597150

SCREW - (8X25) FOR CALIPER OR SHOCK ABSORBER "PIAGGIO GENUINE PART" COMMON TO THE RANGE -597150

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	69377
	Maker reference	845978

845978 - COLLIER

	P2R reference	78329
	Maker reference	319538

319538 - VIS

	P2R reference	63838
	Maker reference	0069665

006966 - RONDELLE S00696600

	P2R reference	65368
	Maker reference	0139505

013950 - RONDELLE S01395000

	P2R reference	149096
	Maker reference	241936

241936 - ECROU

	P2R reference	83058
	Maker reference	601970

601970 - COLLIER

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	83038
	Maker reference	601737

601737 - TUYAU A FREIN

	P2R reference	83035
	Maker reference	601715

601715 - CANALISATEUR

	P2R reference	82811
	Maker reference	600180

REAR BRAKE HOSE "PIAGGIO GENUINE PART" 125-250 MP3, X8, X-EVO -600180-

	P2R reference	86779
	Maker reference	647898

647898 - CANALISATEUR A FREIN

	P2R reference	95623
	Maker reference	CM072009

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 125-250 MP3 2006>2008, X8 2005>2007, X-EVO 2007>2016< -CM072009

	P2R reference	68018
	Maker reference	647400

BRAKE PADS - "PIAGGIO GENUINE PART" 125-250 MP3 REAR, 125-250 X9-EVO REAR, 125-250 X-EVO REAR, 125-250 X8 REAR, 400 BEVERLY REAR (PAIR) (HENG-TONG) -647400

	P2R reference	66335
	Maker reference	319165

SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	65734
	Maker reference	136916

136916 - PLAQUE

	P2R reference	154352
	Maker reference	434541
	Replaced by référence 72723

434541 - VIS

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	82819
	Maker reference	600240

600240 - PLAQUETTE

	P2R reference	65790
	Maker reference	179013

179013 - RESSORT

	P2R reference	66017
	Maker reference	257134

257134 - COLLIER

	P2R reference	82153
	Maker reference	58517R

58517R - TUYAU A FREIN

	P2R reference	83042
	Maker reference	601743

601743 - CANALISATION FREIN DR.

	P2R reference	83040
	Maker reference	601741

601741 - TUYAU A FREIN GAU.

	P2R reference	66050
	Maker reference	265451

SCREW - BRAKE BANJO BOLT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -265451

	P2R reference	65723
	Maker reference	127927

COPPER GASKET FOR BRAKE CALIPER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -127927

	P2R reference	70959
	Maker reference	969296

969296 - BOULON

	P2R reference	66081
	Maker reference	269273

269273 - COLLIER TUYAU

	P2R reference	65368
	Maker reference	0139505

013950 - RONDELLE S01395000

	P2R reference	149096
	Maker reference	241936

241936 - ECROU

	P2R reference	85926
	Maker reference	640295

OIL PRESSURE SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640295

	P2R reference	77469
	Maker reference	274598

MAIN BRAKE FLUID TANK "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/APRILIA 500 FUOCO -274598

	P2R reference	79623
	Maker reference	498431

498431 - BOUCHON RESERV LOOCK

	P2R reference	66035
	Maker reference	259349

SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349

	P2R reference	85879
	Maker reference	640063

END OF THE STROKE SWITCH - SUSPENSION BLOCKING "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -640063

	P2R reference	72925
	Maker reference	CM017409

SPRING PLATE "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM017409

	P2R reference	72892
	Maker reference	CM002905

CM002905 - COLLIER EX 194011

	P2R reference	86734
	Maker reference	647714

647714 - TUBE JONCTION

	P2R reference	72893
	Maker reference	CM002907

CM002907 - COLLIER

	P2R reference	86942
	Maker reference	649338

649338 - POMPE FREIN

	P2R reference	66366
	Maker reference	414837
	Replaced by référence 72720

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -414837-

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	66366
	Maker reference	414837
	Replaced by référence 72720

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -414837-

	P2R reference	72720
	Maker reference	B016774

SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774

	P2R reference	93052
	Maker reference	846983

846983 - JOINT

	P2R reference	95623
	Maker reference	CM072009

REAR BRAKE CALIPER "PIAGGIO GENUINE PART" 125-250 MP3 2006>2008, X8 2005>2007, X-EVO 2007>2016< -CM072009

	P2R reference	86891
	Maker reference	648968

648968 - PINCES FREIN

	P2R reference	67371
	Maker reference	598921

SCREW - BRAKE CALIPER FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -598921

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	82992
	Maker reference	601359

601359 - DISQUE FREIN

	P2R reference	89926
	Maker reference	665588

ANTI-TILTING DISC "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 - 665588

	P2R reference	67372
	Maker reference	599208

599208 - VIS

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047

	P2R reference	86956
	Maker reference	6494205

PARKING BRAKE LEVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -6494205

	P2R reference	70918
	Maker reference	959559

959559 - VIS

	P2R reference	65414
	Maker reference	0164045

WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404

	P2R reference	67286
	Maker reference	583575

STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575

	P2R reference	68493
	Maker reference	709099

709099 - VIS

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	95791
	Maker reference	CM084605

PARKING BRAKE CALIPER "PIAGGIO GENUINE PART" 125-250-300 MP3, 350 X10 -CM084605

	P2R reference	68052
	Maker reference	648476

PARKING BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -648476

	P2R reference	68052
	Maker reference	648476

PARKING BRAKE PADS - "PIAGGIO GENUINE PART" 125-250-400 MP3 2007>, 300-500 MP3 2010>/GILERA 500 FUOCO 2007> -648476

	P2R reference	69377
	Maker reference	845978

845978 - COLLIER

	P2R reference	65742
	Maker reference	145298

LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298

	P2R reference	154352
	Maker reference	434541
	Replaced by référence 72723

434541 - VIS

	P2R reference	86964
	Maker reference	649502

649502 - COLLIER

	P2R reference	65638
	Maker reference	0310875

031087 - ECROU S03108700

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	86964
	Maker reference	649502

649502 - COLLIER

	P2R reference	65638
	Maker reference	0310875

031087 - ECROU S03108700

	P2R reference	63841
	Maker reference	0069765

006976 - RONDELLE S00697600

	P2R reference	66335
	Maker reference	319165

SCREW - MULTI PURPOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE -319165

	P2R reference	65422
	Maker reference	0166045

016604 - RONDELLE S01660400

	P2R reference	68491
	Maker reference	709047

WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047
