Vehicle Exploded View - PIAGGIO MP3 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

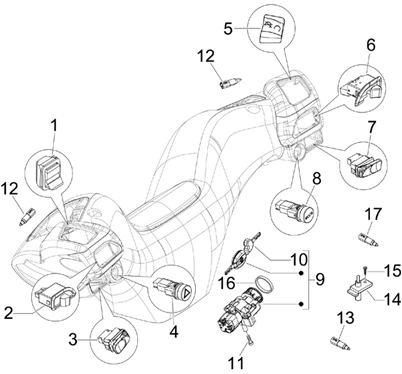

Installation électrique : 06.01 INVERSEURS - COMMUTATEURS - BOUTONS - INTERRUPTEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1/MP3_125_2006-2008_06.01.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/2/img/67982.jpg)
1 |
HEADLIGHT SELECTOR SWITCH "PIAGGIO GENUINE PART" 125-250-300-400 500 MP3, X8, X9, X-EVO, BEVERLY/GILERA 500 FUOCO, 125 RUNNER -642670 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/8/4/img/67984.jpg)
2 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR -6426795 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/3/4/img/86234.jpg)
3 |
HORN SWITCH "PIAGGIO GENUINE PART" COMMON TO ALL MAXISCOOTER RANGE -641743 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/5/img/67265.jpg)
4 |
HAZARD WARNING SWITCH "PIAGGIO GENUINE PART" 125-250-400 MP3, X-EVO, X9/APRILIA 250-300-400-500 SCARABEO -58284R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/5/img/67945.jpg)
5 |
ENGINE STOP SWITCH "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -641824 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/1/6/5/img/86165.jpg)
6 |
ROLL-LOCK SWITCH (SMALL MODEL) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 500 FUOCO -641347 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/2/1/6/img/86216.jpg)
7 |
ELECTRIC STARTER SWITCH "PIAGGIO GENUINE PART" 125-250-300 MP3, X7, VESPA GTS -641609 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/7/7/7/img/81777.jpg)
8 |
PULSANTE MODE "PIAGGIO GENUINE PART" 125-250-400 MP3, X-EVO, 125-300-350 BEVERLY -58255R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/1/2/4/img/85124.jpg)
9 |
IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 125-250 MP3 2006>2008, 500 MP3 2007>2012 -624441 More informationQuantity required : 1 |
||||||
10 |
624440 - CLEF EBAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/7/img/68497.jpg)
11 |
709674 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/6/img/67286.jpg)
12 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 More informationQuantity required : 2 |
||||||
|
13 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/1/img/66011.jpg)
14 |
HELMET COMPARTMENT LIGHT SWITCH "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -255323 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/3/7/img/65437.jpg)
15 |
018536 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/2/9/9/img/87299.jpg)
16 |
KEY SWITCH COVER "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -652624 More informationQuantity required : 1 |
||||||
|
17 |
STOP LAMP SWITCH "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 50 TYPHOON, NRG, 125-250-400 X8, X9, 50-125 FLY, VESPA LX, 125-250-300 VESPA GTS/GILERA 125-250-300 NEXUS -583575 More informationQuantity required : 1 |
