Vehicle Exploded View - PIAGGIO MP3 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

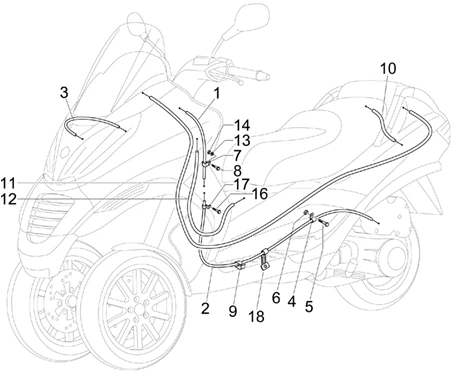

Instalation du freins - transmisisons : 05.03 TRANSMISSIONS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1/MP3_125_2006-2008_05.03.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/7/img/95127.jpg)
1 |
TRANSMISSION CABLE KIT- PARKING BRAKE (FROM LEVER TO UNIT) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -CM012825 More informationQuantity required : 1 |
|||||||||
|
2 |
TRANSMISSION CABLE KIT- PARKING BRAKE (FROM LEVER TO UNIT) "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -CM012825 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/8/4/4/img/86844.jpg)
2 |
TRANSMISSION CABLE KIT- PARKING BRAKE (FROM UNIT TO CALIPER) "PIAGGIO GENUINE PART" 125-250-300 MP3 -648446 More informationQuantity required : 1 |
|||||||||
3 |
648908 - TRANSMISSION A FREIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/6/img/65956.jpg)
4 |
229343 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
5 |
031087 - ECROU S03108700 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/8/img/67348.jpg)
6 |
597565 - ECROU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/0/7/img/72907.jpg)
7 |
CM006905 - RESSOT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/9/img/70959.jpg)
8 |
969296 - BOULON More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
9 |
CM013203 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/4/img/95124.jpg)
10 |
SEAT OPENING TRANSMISSION CABLE "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -CM012822 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/5/img/95125.jpg)
11 |
CABLE KIT FOR BOOT OPENING "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 -CM012823 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/2/6/img/95126.jpg)
12 |
TRANSMISSION CABLE KIT- FOR FUEL TRAPDOOR "PIAGGIO GENUINE PART" MP3 125-250-300-400-500 -CM012824 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
13 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
14 |
219277 - BOULON More informationQuantity required : 1 |
|||||||||
|
15 |
648908 - TRANSMISSION A FREIN More informationQuantity required : 1 |
|||||||||
|
16 |
434541 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/7/img/69377.jpg)
17 |
845978 - COLLIER More informationQuantity required : 1 |
|||||||||
|
18 |
647058 - COLLIER More informationQuantity required : 1 |
|||||||||
