Vehicle Exploded View - PIAGGIO MP3 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

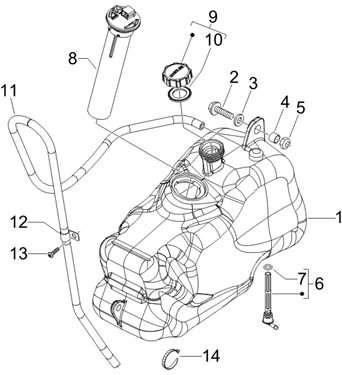

Châssis - parties plastiques - carrosseries : 02.47 RÉSERVOIR CARBURANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1/MP3_125_2006-2008_02.47.PNG)
1 |
623761 - RESERVOIR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
2 |
SCREW - M6X30 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER -B016792 More informationQuantity required : 3 |
|||||||||
|
3 |
268304 - RONDELLE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/1/img/65961.jpg)
4 |
231027 - ENTRETOISE More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/6/img/111436.jpg)
5 |
012138 - ECROU S01213800 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/0/2/img/149102.jpg)
6 |
FUEL TAP UNION "PIAGGIO GENUINE PART" PIAGGIO 125 X8, X9, X-EVO, MP3, BEVERLY -674593 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/2/5/img/65825.jpg)
7 |
FUEL TAP GASKET "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER + MAXISCOOTER -196868 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/4/7/img/72947.jpg)
8 |
FUEL LEVEL GAUGE "PIAGGIO GENUINE PART" 125-250-400-500 MP3, X8, X-EVO, 125-250-300 VESPA GTS -CM025707 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/4/img/66044.jpg)
9 |
FUEL CAP "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER/SCOOTER RANGE -259832 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/6/img/66026.jpg)
10 |
FUEL CAP GASKET "PIAGGIO GENUINE PART" COMMON TO MAXISCOOTER RANGE -258160 More informationQuantity required : 1 |
|||||||||
|
11 |
CM011904 - TUYAU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/1/img/69541.jpg)
12 |
847778 - PLAQUETTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/3/img/65443.jpg)
13 |
018575 - VIS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/6/img/70716.jpg)
14 |
FUEL TAP HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE SCOOTER/ MAXISCOOTER -879888 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
16 |
CM013203 - RESSORT More informationQuantity required : 1 |
|||||||||
|
17 |
CM011904 - TUYAU More informationQuantity required : 1 |
|||||||||
