Vehicle Exploded View - PIAGGIO MP3 125 2006-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggio.svg)

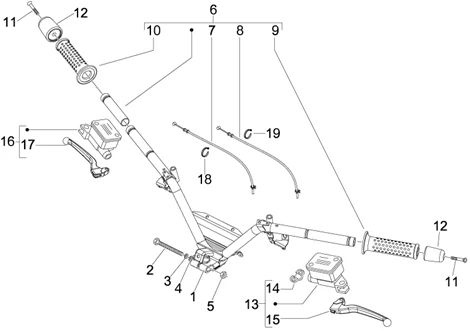

Guidon/direction : 03.06 GUIDON - MAÎTRE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1/MP3_125_2006-2008_03.06.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/4/8/img/89648.jpg)
1 |
HANDLEBAR "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 -6570735 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/9/4/img/68294.jpg)
2 |
655554 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/8/9/img/65789.jpg)
3 |
178790 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/5/0/img/65350.jpg)
4 |
012543 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/8/img/65378.jpg)
5 |
015330 - ECROU More informationQuantity required : 1 |
||||||
6 |
CM060974 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/3/6/img/95636.jpg)
7 |
CM073306 - TRANSMISSION GAZ More informationQuantity required : 1 |
||||||
|
8 |
CLOSING THROTTLE CABLE KIT "PIAGGIO GENUINE PART" 125-300 YOURBAN -648139 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/9/img/66099.jpg)
9 |
LEFT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271452 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/0/img/66100.jpg)
10 |
RIGHT HANDLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271453 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/4/3/img/67143.jpg)
11 |
SCREW - FOR BAR ENDS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -576836 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/3/6/img/88436.jpg)
12 |
BAR ENDS - CHROME "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3 DROIT OU GAUCHE -654603 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/6/8/img/95668.jpg)
13 |
REAR BRAKE MASTER CYLINDER- "PIAGGIO GENUINE PART" 125-250-400 MP3, 125-250 X8 -CM076307- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/9/0/4/img/82904.jpg)
14 |
MASTER CYLINDER BRACKET "PIAGGIO GENUINE PART" 125-250 X-EVO, X8, X9, 125-250-300-400-500 MP3 -600476- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/3/6/img/67436.jpg)
15 |
LEFT/RIGHT BRAKE LEVER - "PIAGGIO GENUINE PART" 125-250-400-500 MP3, BEVERLY, X-EVO/GILERA 50-125 DNA, 125-250-300 NEXUS, 500 FUOCO (HENG-TONG) -600475 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/6/7/2/img/95672.jpg)
16 |
CM077402 - CYLINDRE IDR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/6/6/4/2/img/86642.jpg)
17 |
RIGHT/LEFT BRAKE LEVER - "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3, BEVERLY, 400 X-EVO/GILERA 500 NEXUS, FUOCO (BREMBO) -646829 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/2/img/65742.jpg)
18 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
||||||
|
19 |
LOCK STRAP (L180 MM) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -145298 More informationQuantity required : 1 |
