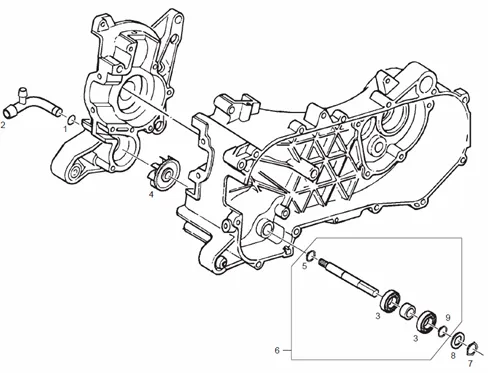

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)

	P2R reference	66216
	Maker reference	289254

GASKET OF FITTING WATER PUMP OEM PIAGGIO 50 NRG/GILERA 50 RUNNER/APRILIA 50 SR H2O LIQUIDE-289254

More information

Quantity required : 1

	P2R reference	70699
	Maker reference	878910

FITTING WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-878910

More information

Quantity required : 1

	P2R reference	66736
	Maker reference	487392

BEARING (8X22X7) WATER PUMP OEM PIAGGIO NRG 2007 > 2008-487392

More information

Quantity required : 1

	P2R reference	66748
	Maker reference	487730

TURBINE OF PUMP A WATER OEM PIAGGIO 50 NRG/GILERA 50 DNA, RUNNER-487730

More information

Quantity required : 1

	P2R reference	65429
	Maker reference	0167195

CIRCLIPS REGULATEUR AVANCE INJECTION OEM PIAGGIO THREE-WHEELER APE DIEDEL TM 703 1997 > 2004/CIRCLIPS SPINDLE WATER PUMP GILERA DNA 50 2006-016719

More information

Quantity required : 1

	P2R reference	66919
	Maker reference	497406

KIT SPINDLE WATER PUMP OEM PIAGGIO 50 NRG 1998 > ZIP SP 2006 >/GILERA 50 RUNNER 1997 >, DNA 1998 >/APRILIA 50 SR H2O 1998 >-497406

More information

Quantity required : 1

	P2R reference	66226
	Maker reference	289553

CLIPS/CIRCLIPS DE BUTEE SHAFT OF WATER PUMP OEM PIAGGIO 50 NRG, ZIP SP/GILERA 50 RUNNER, DNA/APRILIA 50 SR H2O-289553

More information

Quantity required : 1

	P2R reference	66227
	Maker reference	289554

WASHER/RACLEUR WATER PUMP OEM PIAGGIO 50 SR APRILIA, RUNNER GILERA 2005 >-289554

More information

Quantity required : 1

	P2R reference	63808
	Maker reference	0064085

CLIPS/CIRCLIPS (7. 3) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-006408

More information

Quantity required : 1
