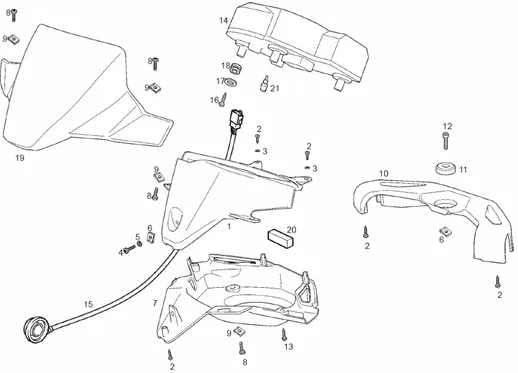

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 12 TABLEAU DE BORD
Tableau de bord
Search
00G01016521 - CACHE DIRECTION

1
P2R reference P2R reference 194935
Maker reference Maker reference 00G01016521

00G01016521 - CACHE DIRECTION

More information

Quantity required : 1

2
P2R reference P2R reference
Maker reference Maker reference 000111314015

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

3
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

More information

Quantity required : 1

00012162000 - BOULON TETE HEX.5M80X15

4
P2R reference P2R reference 63705
Maker reference Maker reference 000121620005

00012162000-BOLT HEAD HEX. 5M80X15

More information

Quantity required : 1

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

5
P2R reference P2R reference 63726
Maker reference Maker reference 000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

862564 - CARCASA INF.GP1 OPEN ¦06

7
P2R reference P2R reference 194936
Maker reference Maker reference 862564

862564-CARCASA INF. GP1 OPEN - 06

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200

8
P2R reference P2R reference 63693
Maker reference Maker reference 000120512005

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-00012051200

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

9
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 1

00G015016515 - COUVERCLE

10
P2R reference P2R reference 194937
Maker reference Maker reference 00G015016515

00G015016515 - COUVERCLE

More information

Quantity required : 1

00G05900711 - ENTRETOISE

11
P2R reference P2R reference 194938
Maker reference Maker reference 00G05900711

00G05900711 - ENTRETOISE

More information

Quantity required : 1

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

12
P2R reference P2R reference 71815
Maker reference Maker reference AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference 000111314015

00G01639521 - INSTRUMENTERHALTER (MPH)

14
P2R reference P2R reference 195389
Maker reference Maker reference 00G01639521

00G01639521 - INSTRUMENTERHALTER (MPH)

More information

Quantity required : 1

86106R - CTO.TABLIER GP1 50CC OPEN ¦06

14
P2R reference P2R reference 195143
Maker reference Maker reference 86106R

86106R-CTO. LEG SHIELD GP1 50CC OPEN - 06

More information

Quantity required : 1

SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 DRD, GPR 2005 > 2011/APRILIA 50 RX 2006 > 2017, SX 2006 > 2017, RS 2006 > 2019-898626

15
P2R reference P2R reference 70887
Maker reference Maker reference 898626

SENSOR OF SPEED/CABLE/CONTROL DE INSTRUMENT CLUSTER OEM DERBI 50 DRD, GPR 2005 > 2011/APRILIA 50 RX 2006 > 2017, SX 2006 > 2017, RS 2006 > 2019-898626

More information

Quantity required : 1

00011941300 - VIS

16
P2R reference P2R reference 63690
Maker reference Maker reference 000119413005

00011941300-SCREW

More information

Quantity required : 1

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

17
P2R reference P2R reference 69480
Maker reference Maker reference 847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

More information

Quantity required : 1

00H01602941 - CAOUTCHOUC PASSE-CABLE

18
P2R reference P2R reference 64575
Maker reference Maker reference 00H01602941

00H01602941-RUBBER GUIDE-CABLE

More information

Quantity required : 1

00G01506751 - COUVERCLE

19
P2R reference P2R reference 194939
Maker reference Maker reference 00G01506751

00G01506751 - COUVERCLE

More information

Quantity required : 1

00H06300841 - CHOC PROTEGE CHAINE

20
P2R reference P2R reference 195144
Maker reference Maker reference 00H06300841

00H06300841-CHOC PROTEGE CHAIN

More information

Quantity required : 1

00G01602581 - R-PORTE-LAMPES

21
P2R reference P2R reference 64003
Maker reference Maker reference 00G01602581

00G01602581-R-DOOR-LAMPES

More information

Quantity required : 1
