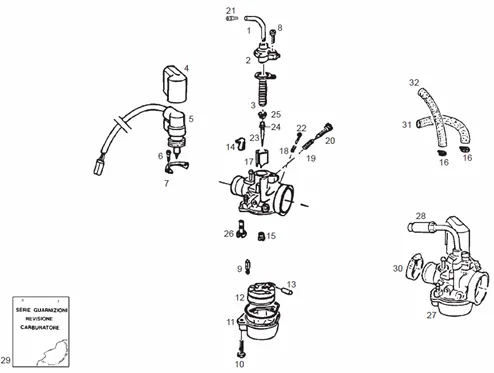

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)

	P2R reference	65699
	Maker reference	113903

COUDE DE CABLE DE THROTTLE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-113903

	P2R reference	66415
	Maker reference	431654

COVER BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE-431654

	P2R reference	66626
	Maker reference	482942

SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942

	P2R reference	66687
	Maker reference	485671

COIFFE DE CARBURETTOR DELLORTO OEM PIAGGIO COMMON A LA RANGE-485671

	P2R reference	73087
	Maker reference	CM105905

STARTER OEM PIAGGIO 50 ZIP 2000 >, TYPHOON, NRG, LIBERTY, VESPA LX 2005 >, PRIMAVERA 2013 > VESPA-S 2007 >, SPRINT 2014 >/GILERA 50 STALKER, RUNNER 2005 >/APRILIA 50 SR MOTARD, SRH2O-CM105905

	P2R reference	66228
	Maker reference	289575

SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575

	P2R reference	66201
	Maker reference	288863

PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863

	P2R reference	66202
	Maker reference	288865

SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865

	P2R reference	73147
	Maker reference	CM128502

POINTEAU OEM PIAGGIO 50 NRG/GILERA 50 RUNNER, DNA/APRILIA 50 RS, RX, SX, MOJITO-CM128502

	P2R reference	66200
	Maker reference	288862

SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862

	P2R reference	66664
	Maker reference	484704

CUVE CARBURETTOR SCOOTER OEM PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA-484704

	P2R reference	66625
	Maker reference	482916

FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916

	P2R reference	66209
	Maker reference	288881

SPINDLE FLOTTEUR PHVA OEM PIAGGIO COMMON A LA RANGE-288881

	P2R reference	66485
	Maker reference	436206

FITTING ARRIVE D'HUILE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-436206

	P2R reference	187721
	Maker reference	00G03208031

00G03208031 - GLICEUR PRINCIPAL55

	P2R reference	73045
	Maker reference	CM101704

HAND OPEN FACE (53) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-CM101704

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

	P2R reference	73181
	Maker reference	CM141710

VOLET/BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM141710

	P2R reference	65670
	Maker reference	0852855

SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285

	P2R reference	65751
	Maker reference	152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

	P2R reference	68725
	Maker reference	828074

SCREW REGLAGE THROTTLE BODY DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-828074

	P2R reference	66203
	Maker reference	288868

SCREW REGLABLE TENTION DE CABLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288868

	P2R reference	73102
	Maker reference	CM107701

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM107701

	P2R reference	73100
	Maker reference	CM107510

CARBURETTOR NEEDLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-CM107510

	P2R reference	195402
	Maker reference	00G03209431

00G03209431 - AGUJA PULVERIZ. A-14 GP1 SUIZA

	P2R reference	66204
	Maker reference	288872

CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872

	P2R reference	66205
	Maker reference	288873

BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873

	P2R reference	73067
	Maker reference	CM102103

GICLEUR DE RALENTI OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM102103

	P2R reference	69533
	Maker reference	847562

847562-CARBURETTOR

	P2R reference	195403
	Maker reference	00G03245011

00G03245011 - R-CTO KIT CARBURADOR GP1

	P2R reference	70587
	Maker reference	875551

CAPUCHON RUBBER DE GAINE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-875551

	P2R reference	66972
	Maker reference	498409

POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409

	P2R reference	149124
	Maker reference	1A006280
	Replaced by référence 68498

1A006280 - COLLIER

	P2R reference	149124
	Maker reference	842202
	Replaced by référence 68498

1A006280 - COLLIER

	P2R reference	66781
	Maker reference	488139

488139-TUBE

	P2R reference	66657
	Maker reference	484260

HOSE BY PASS CYLINDER HEAD-CARBU OEM PIAGGIO 50 NRG 2005 >-484260
