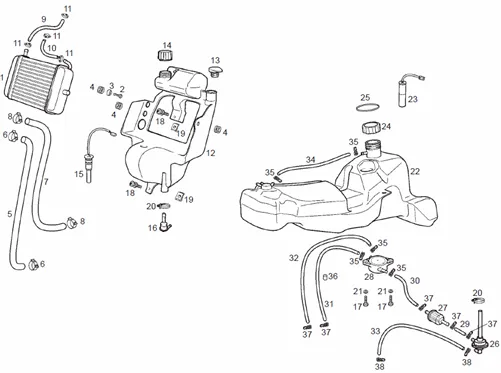

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)

	P2R reference	195334
	Maker reference	00G03804011

00G03804011 - RADIATEUR

	P2R reference	63696
	Maker reference	000120612005

SCREW CRUCIFORME (6X12) OEM PIAGGIO COMMON A LA RANGE-00012061200

	P2R reference	188393
	Maker reference	00D01500551

00D01500551 - CUVETTE

	P2R reference	63673
	Maker reference	000089150205

RUBBER MOUNT DE RADIATOR OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA RS 2006 > 2011, SX, RX 2006 >-00008915020

	P2R reference	195335
	Maker reference	00G03801041

00G03801041 - TUYAU

	P2R reference	64107
	Maker reference	00G03801091

00G03801091-CLAMP

	P2R reference	195336
	Maker reference	00G03803021

00G03803021 - TUYAU

	P2R reference	63670
	Maker reference	000082045005

00008204500-CLAMP COBRA 21/8 W4

	P2R reference	195337
	Maker reference	00G03803491

00G03803491 - TUYAU

	P2R reference	195338
	Maker reference	00G03803521

00G03803521 - TUYAU

	P2R reference	64108
	Maker reference	00G03801701

CLAMP HOSE OEM PIAGGIO COMMON A LA RANGE

	P2R reference	195339
	Maker reference	00G03703081

00G03703081 - RESERVOIR D' EAU / HUILE

	P2R reference	64821
	Maker reference	00H03702061

CAP DE TANK OIL OEM PIAGGIO GILERA 125 SC/APRILIA 50 RS 2006 > 2010-00H03702061

	P2R reference	67743
	Maker reference	623673

CAP VASE EXPANSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-623673

	P2R reference	70338
	Maker reference	867531

JAUGE/SONDE DE NIVEAU OIL OEM DERBI 50 SENDA 2000 > 2010/GILERA 50 SMT, RCR 2006/APRILIA SX, RX 2006 > 2017-867531

	P2R reference	153428
	Maker reference	00H03701411

00H03701411 - FILTRE A HUILE

	P2R reference	63646
	Maker reference	000040616005

00004061600-SCREW

	P2R reference	65008
	Maker reference	00H05900021

SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021

	P2R reference	66009
	Maker reference	254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

	P2R reference	63932
	Maker reference	00G00400501

CLAMP ROBINET FUEL OEM DERBI 50 SENDA 2000 >-00G00400501

	P2R reference	63786
	Maker reference	004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

	P2R reference	195340
	Maker reference	00G00414011

00G00414011-FUEL TANK

	P2R reference	195341
	Maker reference	00G04309181

00G04309181-FLOTTEUR FUEL

	P2R reference	194882
	Maker reference	00G00402131

00G00402131-CAP RESERV. FUEL V. B

	P2R reference	187313
	Maker reference	00G06200051

00G06200051-GASKET

	P2R reference	68473
	Maker reference	674594

ROBINET FUEL SCOOT OEM PIAGGIO 50-125 FLY 2005 >, LIBERTY 1998 >, 50 TYPHOON 2010 >, ZIP 2000 >, 125 VESPA LX 2005 >, VESPA GTS 2007 >/APRILIA 50-125 SPORT-CITY 2008 >-674594

	P2R reference	194884
	Maker reference	00G00400611

00G00400611 - FILTRE A ESSENCE

	P2R reference	73126
	Maker reference	CM120903

FUEL PUMP OEM PIAGGIO 50 FLY 4T 2012 >, NRG 2005 >, 125 MP3 2007 >, X8 2004 >, X-EVO 2007 >/50-125 GILERA RUNNER 2005 >/APRILIA 125 ATLANTIC 2003 >-CM120903

	P2R reference	195342
	Maker reference	00G00404321

00G00404321 - TUYAU

	P2R reference	189221
	Maker reference	00F00408321

00F00408321-TUBO GRIF. GAS.-FILTR. D10X5X35

	P2R reference	195343
	Maker reference	00G06205061

00G06205061 - TUYAU

	P2R reference	194265
	Maker reference	00G03701111

00G03701111 - TUYAU SORTIE HUILE VAMOS-K

	P2R reference	195344
	Maker reference	00G00403321

00G00403321 - TUYAU

	P2R reference	195345
	Maker reference	00G03701461

00G03701461 - TUYAU

	P2R reference	64817
	Maker reference	00H03701131

00H03701131 - COLLIER

	P2R reference	195346
	Maker reference	00G06205081

00G06205081 - ENTRETOISE

	P2R reference	63891
	Maker reference	00D03700131

00D03700131 - CRAMPON ELASTIQUE TUBE ESSE

	P2R reference	64241
	Maker reference	00H00400501

HOSE CLAMP HOSE (7, 8-8, 3) OEM PIAGGIO COMMON A LA RANGE-00H00400501
