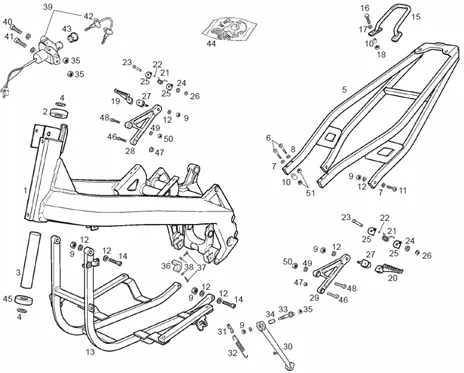

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA)

	P2R reference	195296
	Maker reference	00G019306015

00G019306015 - SOUS ENSEMBLE CADRE

	P2R reference	63606
	Maker reference	000000562055

BEARING (25X52X15) DE STEERING OEM PIAGGIO 50 GILERA SMT, RCR 2006 > 2017/DERBI SENDA 2000 > 2015/APRILIA SX, RX 2006 > 2011-00000056205

	P2R reference	64149
	Maker reference	00G06302401

00G06302401-TUBE SEP. BEARING STEERING

	P2R reference	195297
	Maker reference	00G06303401

00G06303401 - TUBO SEP.RDMTO.DIRECC.GP1 05

	P2R reference	192856
	Maker reference	00H02001721

00H02001721 - RONDELLE FIXE DIRECTION 35X25X

	P2R reference	195298
	Maker reference	00G00101341

00G00101341 - CADRE ARRIERE

	P2R reference	63652
	Maker reference	000041845005

SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-00004184500

	P2R reference	63600
	Maker reference	000000330805

00000033080-WASHER

	P2R reference	63715
	Maker reference	000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

	P2R reference	194851
	Maker reference	00G01403411

00G01403411-SPACER

	P2R reference	63651
	Maker reference	000041840015

00004184001 - VIS

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	195299
	Maker reference	00G00102941

00G00102941 - CADRE ANT

	P2R reference	63620
	Maker reference	000020840115

00002084011 - VIS

	P2R reference	194852
	Maker reference	00G04902731A

00G04902731A - POIGNÉE

	P2R reference	65647
	Maker reference	0311205

SCREW TH (8X25) OEM PIAGGIO COMMON A LA RANGE-031120

	P2R reference	63591
	Maker reference	000000230805

00000023080-NUT INDESSERABLE 8M125

	P2R reference	64554
	Maker reference	00H01507091

FOOTREST RIGHT OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01507091

	P2R reference	64556
	Maker reference	00H01507451

FOOTREST LEFT OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00H01507451

	P2R reference	64951
	Maker reference	00H04902291

SPRING FOOTREST REAR OEM DERBI 50-125 GPR 2008 < 00H04902291

	P2R reference	63608
	Maker reference	000000610615

BILLE DIAMETRE 6 OEM PIAGGIO COMMON A LA RANGE-00000061061

	P2R reference	64952
	Maker reference	00H04902311

00H04902311-SPINDLE ARTICULATION TRIER

	P2R reference	63876
	Maker reference	00D01200171

WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171

	P2R reference	64955
	Maker reference	00H04903401

00H04903401-BRACKET MOUNTING TRIER PASSAG

	P2R reference	63736
	Maker reference	000470304005

CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400

	P2R reference	64670
	Maker reference	00H02202301

BRACKET FOOTREST PILOTE LEFT OEM APRILIA 50 RS 2T 2006 > 2010-00H02202301

	P2R reference	64531
	Maker reference	00H01501131

FOOTREST SUPPORT- FRONT LEFT "PIAGGIO GENUINE PART" APRILIA 50 RS 2006>2010 -00H01501131

	P2R reference	195300
	Maker reference	00G01500131

00G01500131 - REPOSE PIED GAUCHE

	P2R reference	195301
	Maker reference	00G00807011

00G00807011 - BEQUILLE LATERALE

	P2R reference	64310
	Maker reference	2B004468

PLATE/BRACKET SPRING DE STAND OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RS, RX, SX 2006 >-00H00800422

	P2R reference	63942
	Maker reference	00G00800081

00G00800081 - RESSORT BEQUILLE

	P2R reference	195302
	Maker reference	00G00803071

00G00803071-SCREW

	P2R reference	166401
	Maker reference	00H00801261

00H00801261 - DOUILLE ROT.JAMBE BEQUILLE SEN

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	195303
	Maker reference	00G01800331

00G01800331-GUIDE CHAONE

	P2R reference	63687
	Maker reference	000111413005

SCREW PARKER (4, 8X13) CRUCIFORME OEM COMMON A LA RANGE-00011141300

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference	64139
	Maker reference	00G05900331

IGNITION KEY SWITCH "PIAGGIO GENUINE PART" PIAGGIO 100 DIESIS -00G05900331-

	P2R reference	71815
	Maker reference	AP8150044

SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044

	P2R reference	109062
	Maker reference	830487

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

	P2R reference	109062
	Maker reference	1A000352

SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352

	P2R reference	187450
	Maker reference	00H01801411

00H01801411-CLEF

	P2R reference	63984
	Maker reference	00G01500021

IGNITION SWITCH COVER "PIAGGIO GENUINE PART" PIAGGIO 50 DIESIS -00G01500021-

	P2R reference	195304
	Maker reference	00G05908251

00G05908251-ENS. KIT SERRURES

	P2R reference	195305
	Maker reference	00G06501451

00G06501451-BEARING

	P2R reference	63715
	Maker reference	000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

	P2R reference	63787
	Maker reference	004020800015

WASHER PLATE (D8) MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA/APRILIA 50 SX, RX, RS-00402080001

	P2R reference	63715
	Maker reference	000231080005

NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000

	P2R reference	63720
	Maker reference	000260080015

NUT FLANGE (8X1. 25) OEM PIAGGIO COMMON A LA RANGE-00026008001
