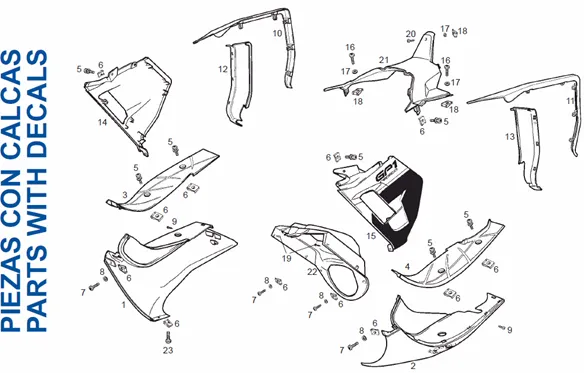

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 09B CARROSSERIE
Carrosserie
Search
86415100W0G - CTO.QUILLA DR.GP1 RACE MALOSSI 07

1
P2R reference P2R reference 195374
Maker reference Maker reference 86415100W0G

86415100W0G - CTO.QUILLA DR.GP1 RACE MALOSSI 07

More information

Quantity required : 1

00G01504281 - COUVERCLE INF. GA.

2
P2R reference P2R reference 195368
Maker reference Maker reference 00G01504281

00G01504281 - COUVERCLE INF. GA.

More information

Quantity required : 1

00G01506091 - REPOSE-PIED

3
P2R reference P2R reference 195369
Maker reference Maker reference 00G01506091

00G01506091-REST-FOOT

More information

Quantity required : 1

00G01501451 - REPOSE-PIED

4
P2R reference P2R reference 195370
Maker reference Maker reference 00G01501451

00G01501451-REST-FOOT

More information

Quantity required : 1

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

5
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

6
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

00012162000 - BOULON TETE HEX.5M80X15

7
P2R reference P2R reference 63705
Maker reference Maker reference 000121620005

00012162000-BOLT HEAD HEX. 5M80X15

More information

Quantity required : 1

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

8
P2R reference P2R reference 63726
Maker reference Maker reference 000311060005

WASHER PLATE (6X12X1. 7) OEM PIAGGIO COMMON A LA RANGE-00031106000

More information

Quantity required : 1

00011142500 - TOR.AUTR.C/CRUZ B 4,2X25 D7981 ZNB

9
P2R reference P2R reference 63688
Maker reference Maker reference 000111425005

00011142500-TOR. AUTR. C/CRUZ B 4, 2X25 D7981 ZNB

More information

Quantity required : 1

00G04400971 - COUVERCLE

10
P2R reference P2R reference 194915
Maker reference Maker reference 00G04400971

00G04400971-COVER

More information

Quantity required : 1

00G04400981 - COUVERCLE

11
P2R reference P2R reference 194916
Maker reference Maker reference 00G04400981

00G04400981-COVER

More information

Quantity required : 1

00G04402771 - COUVERCLE

12
P2R reference P2R reference 195371
Maker reference Maker reference 00G04402771

00G04402771-COVER

More information

Quantity required : 1

00G04402781 - COUVERCLE

13
P2R reference P2R reference 195372
Maker reference Maker reference 00G04402781

00G04402781-COVER

More information

Quantity required : 1

86414600W0N5 - R-CTO.LTRAL.DLNT.DR.GP1 MALOSSI 07

14
P2R reference P2R reference 195375
Maker reference Maker reference 86414600W0N5

86414600W0N5 - R-CTO.LTRAL.DLNT.DR.GP1 MALOSSI 07

More information

Quantity required : 1

86414700W0N5 - R-CTO.LTRAL.DLNT.IZ.GP1 MALOSSI 07

15
P2R reference P2R reference 195376
Maker reference Maker reference 86414700W0N5

86414700W0N5 - R-CTO.LTRAL.DLNT.IZ.GP1 MALOSSI 07

More information

Quantity required : 1

00012151500 - VIS A TETE RONDE A FENTES C

16
P2R reference P2R reference 63702
Maker reference Maker reference 000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

More information

Quantity required : 1

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

17
P2R reference P2R reference 69496
Maker reference Maker reference 847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

18
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 1

19
P2R reference P2R reference
Maker reference Maker reference 000110310015

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-00008051200

20
P2R reference P2R reference 63661
Maker reference Maker reference 000080512005

SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-00008051200

More information

Quantity required : 1

00G00400681 - COUVERCLE RESERVOIR ESSENCE

21
P2R reference P2R reference 195136
Maker reference Maker reference 00G00400681

00G00400681-COVER FUEL TANK

More information

Quantity required : 1

00G00710341 - GARDE-BOUE

22
P2R reference P2R reference 195373
Maker reference Maker reference 00G00710341

00G00710341 - GARDE-BOUE

More information

Quantity required : 1

SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861

23
P2R reference P2R reference 65033
Maker reference Maker reference 00H06300861

SCREW BTR (6X14) MOUNTING FAIRING OEM PIAGGIO GILERA 50 GPR-00H06300861

More information

Quantity required : 1
