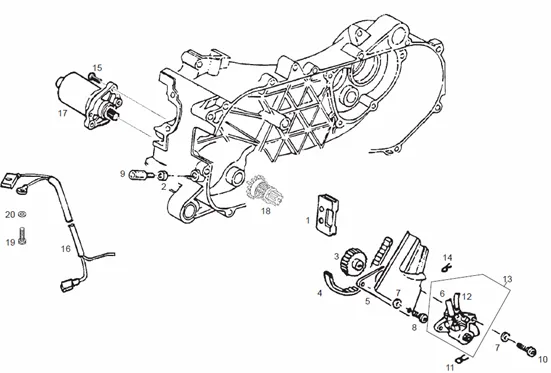

Vehicle Exploded View - DERBI GP1 50 Race 2ver E2 2005-2007 (EMEA) DERBI

Moteur : 23 POMPE HUILE
Pompe huile
Search
GUIDE CABLES OEM PIAGGIO COMMON A LA RANGE-287021

1
P2R reference P2R reference 66178
Maker reference Maker reference 287021

GUIDE CABLES OEM PIAGGIO COMMON A LA RANGE-287021

More information

Quantity required : 1

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

2
P2R reference P2R reference 65461
Maker reference Maker reference 0201065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106

More information

Quantity required : 1

GEAR OF PUMP A OIL OEM PIAGGIO GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG ENGINE H2O-289262

3
P2R reference P2R reference 66217
Maker reference Maker reference 289262

GEAR OF PUMP A OIL OEM PIAGGIO GILERA 50 RUNNER, DNA/PIAGGIO 50 NRG ENGINE H2O-289262

More information

Quantity required : 1

BELT OIL PUMP OEM PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-286162

4
P2R reference P2R reference 66161
Maker reference Maker reference 286162

BELT OIL PUMP OEM PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-286162

More information

Quantity required : 1

PLATE BRACKET OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-286163

5
P2R reference P2R reference 66162
Maker reference Maker reference 286163

PLATE BRACKET OIL PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-286163

More information

Quantity required : 1

HOSE/TUBE D'HUILE ENTRE TANK ET PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101509

6
P2R reference P2R reference 73043
Maker reference Maker reference CM101509

HOSE/TUBE D'HUILE ENTRE TANK ET PUMP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101509

More information

Quantity required : 1

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

7
P2R reference P2R reference 63840
Maker reference Maker reference 0069755

WASHER (5, 3X10X0, 5) OEM PIAGGIO COMMON A LA RANGE-006975

More information

Quantity required : 1

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

8
P2R reference P2R reference 65383
Maker reference Maker reference 0155855

SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A TOUTE LA RANGE-015585

More information

Quantity required : 1

SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197

9
P2R reference P2R reference 65745
Maker reference Maker reference 146197

SCREW REGLAGE CABLE OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-146197

More information

Quantity required : 1

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

10
P2R reference P2R reference 65399
Maker reference Maker reference 0158565

SCREW CRUCIFORME (5X21) OEM PIAGGIO COMMON A LA RANGE-015856

More information

Quantity required : 1

CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590

11
P2R reference P2R reference 65967
Maker reference Maker reference 231590

CLIPS SPRING (D17) OEM PIAGGIO COMMON A LA RANGE-231590

More information

Quantity required : 1

HOSE/HOSE ENTRE OIL PUMP ET CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101605

12
P2R reference P2R reference 73044
Maker reference Maker reference CM101605

HOSE/HOSE ENTRE OIL PUMP ET CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM101605

More information

Quantity required : 1

PUMP OIL OEM PIAGGIO 50 TYPHOON, NRG, ZIP, FLY, LIBERTY 2000 >/APRILIA 50 SR H2O 2003 >/GILERA 50 STALKER, RUNNER, DNA 2000 >-82605R

13
P2R reference P2R reference 68580
Maker reference Maker reference 82605R

PUMP OIL OEM PIAGGIO 50 TYPHOON, NRG, ZIP, FLY, LIBERTY 2000 >/APRILIA 50 SR H2O 2003 >/GILERA 50 STALKER, RUNNER, DNA 2000 >-82605R

More information

Quantity required : 1

CLAMP (5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-486149

14
P2R reference P2R reference 66705
Maker reference Maker reference 486149

CLAMP (5MM) SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE-486149

More information

Quantity required : 1

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

15
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 1

639856 - FAISCEAU CABLES

16
P2R reference P2R reference 67858
Maker reference Maker reference 639856

639856-WIRING HARNESS

More information

Quantity required : 1

STARTER MOTOR OEM PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T-82530R

17
P2R reference P2R reference 68531
Maker reference Maker reference 82530R

STARTER MOTOR OEM PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T-82530R

More information

Quantity required : 1

LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82958R

18
P2R reference P2R reference 66164
Maker reference Maker reference 82958R

LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82958R

More information

Quantity required : 1

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

19
P2R reference P2R reference 65449
Maker reference Maker reference 0186445

SCREW CRUCIFORME (4X6) OEM PIAGGIO COMMON A LA RANGE-018644

More information

Quantity required : 1

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

20
P2R reference P2R reference 65414
Maker reference Maker reference 0164045

WASHER (4, 2X7, 6X0, 9) OEM PIAGGIO COMMON A LA RANGE-016404

More information

Quantity required : 1
