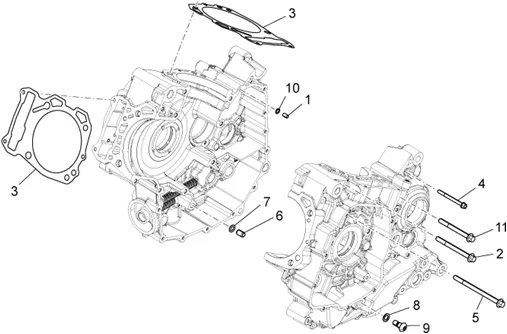

Moteur : 29.37 CARTERS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_29.37.PNG)
1 |
874598-GRAIN DE REFERENCE More informationQuantity required : 1 |
||||||
|
2 |
877814-SCREW More informationQuantity required : 2 |
||||||
|
3 |
CM159601-GASKET CYLINDER/CARTE 0, 4R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/8/0/8/img/62808.jpg)
3 |
CYLINDER BASE GASKET DE CYLINDER (0, 5MM) OEM PIAGGIO APRILIA 1200 CAPONORD, DORSODURO-CM159602 More informationQuantity required : 1 |
||||||
|
3 |
CM159603-GASKET CYLINDER/CASING 0, 6 More informationQuantity required : 1 |
||||||
|
4 |
874548-SCREW FLANGE More informationQuantity required : 11 |
||||||
|
5 |
872182-SCREW FLANGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
6 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 1 |
||||||
|
7 |
878434-BUSH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/3/img/66703.jpg)
8 |
GASKET OF MANO OU DE VIDANGE OEM PIAGGIO COMMON A LA RANGE-486075 More informationQuantity required : 1 |
||||||
|
9 |
B013063-SCREW SPECIALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/2/9/img/111629.jpg)
10 |
O-RING BOX OF SPEED OU WATER PUMP OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000 RSV-4/PIAGGIO THREE-WHEELER APE-224035 More informationQuantity required : 1 |
||||||
|
11 |
874546-SCREW FLANGE More informationQuantity required : 6 |
