Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

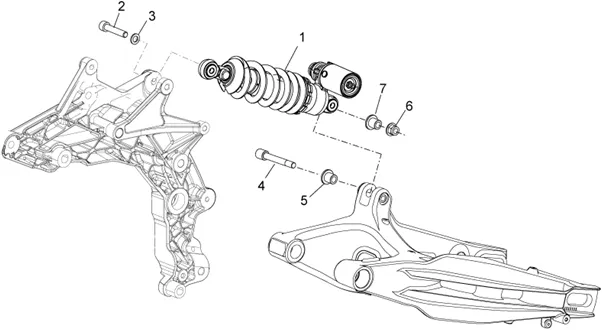

Chassis : 28.09 SUSPENSION ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.09.PNG)
1 |
898113-SHOCK ABSORBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/6/0/img/71860.jpg)
2 |
SCREW BTR (10X50) OEM PIAGGIO COMMON A LA RANGE-AP8150329 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/2/img/97092.jpg)
3 |
WASHER PLATE (10. 5X18X2) OEM PIAGGIO COMMON A LA RANGE-AP8152176 More informationQuantity required : 2 |
||||||
|
4 |
AP8150287-SCREW More informationQuantity required : 1 |
||||||
|
5 |
860662-COUPELLE SHOCK ABSORBER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
7 |
BUSH EN T (D10) OEM PIAGGIO COMMON A LA RANGE-AP8121155 More informationQuantity required : 1 |
