Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

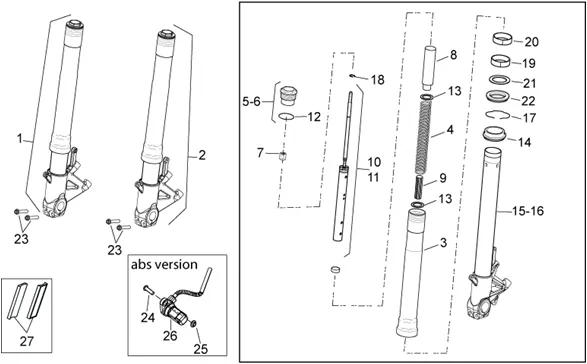

Chassis : 28.07 FOURCHE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.07.PNG)
1 |
896007 - TIGE DROITE More informationQuantity required : 1 |
||||||
|
2 |
896008 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
897328 - FOURREAU More informationQuantity required : 2 |
||||||
|
4 |
897329-SPRING More informationQuantity required : 2 |
||||||
|
5 |
897330 - GR. BOUCHON CPL. More informationQuantity required : 1 |
||||||
|
6 |
897348-GR. CAP CPL. More informationQuantity required : 1 |
||||||
|
7 |
897331-NUT More informationQuantity required : 2 |
||||||
|
8 |
897332-HOSE PRECHARGE More informationQuantity required : 2 |
||||||
|
9 |
897333-GUIDE RES. More informationQuantity required : 2 |
||||||
|
10 |
897334 - ELEM.POMPAGE CPL More informationQuantity required : 1 |
||||||
|
11 |
897349-ELEM. POMPAGE CPL More informationQuantity required : 1 |
||||||
|
12 |
897335-O-RING More informationQuantity required : 2 |
||||||
|
13 |
897336-WASHER More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/1/img/42721.jpg)
14 |
PROTECTOR-POUSSIERE DE FORK OEM PIAGGIO APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD-897337 More informationQuantity required : 2 |
||||||
|
15 |
897338 - TIGE More informationQuantity required : 1 |
||||||
|
16 |
897350 - TIGE More informationQuantity required : 1 |
||||||
|
17 |
897339-BUSH More informationQuantity required : 2 |
||||||
|
18 |
897340-O-RING More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/5/img/42725.jpg)
19 |
BUSH/BUSH DE GUIDAGE DE FORK OEM APRILIA COMMON A LA RANGE MOTO-897341 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/6/img/42726.jpg)
20 |
BUSH OF FRICTION FORK OEM APRILIA COMMON A LA RANGE-897342 More informationQuantity required : 2 |
||||||
|
21 |
897343-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/7/2/8/img/42728.jpg)
22 |
OIL SEAL DE FORK OEM PIAGGIO APRILIA 750 SHIVER, 750-1200 DORSODURO, 1000 RSV-4, TUONO, 1200 CAPONORD-897344 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
23 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
24 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
25 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
26 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
|
26 |
SENSOR ABS OEM PIAGGIO APRILIA 750-900 SHIVER, DORSODURO, 1000-1100 RSV-4, TUONO V4, 125 RX, SX, RS4/MOTO-GUZZI 1400 CALIFORNIA, 750 V7, 1200 STELVIO/PIAGGIO 350-500 X10, BEVERLY-1D003350 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
27 |
CATADIOPTRE AMBRE DE FORK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU05781630 More informationQuantity required : 2 |
