Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

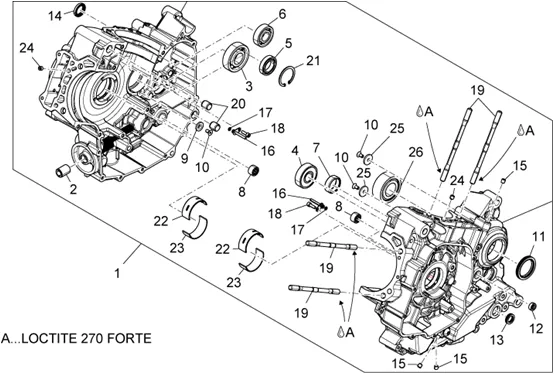

Moteur : 29.36 CARTERS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_29.36.PNG)
1 |
8809935001-CASING CPL More informationQuantity required : 1 |
|||||||||
|
1 |
8809935002-CASING CPL More informationQuantity required : 1 |
|||||||||
|
1 |
8809935003-CASING CPL More informationQuantity required : 1 |
|||||||||
|
1 |
8809935004-CASING CPL More informationQuantity required : 1 |
|||||||||
|
1 |
1A0005391A - CARTER More informationQuantity required : 1 |
|||||||||
|
1 |
1A0005392A-CASING More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/7/img/68817.jpg)
2 |
FITTING/INSERT DE OIL FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC ET MOTO-GUZZI-829122 More informationQuantity required : 1 |
|||||||||
|
3 |
875936-BALL BEARING More informationQuantity required : 1 |
|||||||||
|
4 |
875838-BALL BEARING More informationQuantity required : 1 |
|||||||||
|
5 |
872033-BEARING More informationQuantity required : 1 |
|||||||||
|
6 |
848650 - ROULEMENT More informationQuantity required : 1 |
|||||||||
|
7 |
1A018647 DRAWN CUP NEEDLE More informationQuantity required : 1 |
|||||||||
|
7 |
1A018647 DRAWN CUP NEEDLE More informationQuantity required : 1 |
|||||||||
|
8 |
122671-COQUILLE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/8/img/70508.jpg)
9 |
WASHER CASING ENGINE OEM PIAGGIO COMMON A LA RANGE-873905 More informationQuantity required : 1 |
|||||||||
|
10 |
SCREW BTR HEAD FRAISEE (6X8) OEM PIAGGIO COMMON A LA RANGE-B013608 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/0/4/5/img/39045.jpg)
11 |
OIL SEAL (40X52X7) OEM PIAGGIO COMMON A LA RANGE-848474 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/5/0/img/68550.jpg)
12 |
OIL SEAL 8X16X7 RECEPTEUR CLUTCH OEM PIAGGIO APRILIA 750 DORSODURO, SHIVER-825577 More informationQuantity required : 1 |
|||||||||
|
13 |
974112 - CIRCLIPS 14.22.5 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/8/5/3/1/img/208531.jpg)
13 |
OIL SEAL (14X22X5) OEM APRILIA COMMON A LA RANGE-1A023870 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/1/img/68801.jpg)
14 |
GASKET OF WATER PUMP (20X30X5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-82897R More informationQuantity required : 1 |
|||||||||
|
15 |
430136-CAP More informationQuantity required : 4 |
|||||||||
|
16 |
878567-JET More informationQuantity required : 2 |
|||||||||
|
17 |
487073-GASKET More informationQuantity required : 2 |
|||||||||
|
18 |
B013349-SCREW More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/6/img/109026.jpg)
19 |
STUD (10X1. 25X166) OEM PIAGGIO COMMON A LA RANGE-1A003631R More informationQuantity required : 8 |
|||||||||
|
20 |
974051-STUD More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/4/img/63824.jpg)
21 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006642 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/4/9/9/img/41499.jpg)
22 |
HALF COUSSINET RED UPPER VILEBREQUIN OEM APRILIA 750 DORSODURO, SHIVER 2007-2016 (A L'UNITE)-8783940001 More informationQuantity required : 2 |
|||||||||
|
22 |
COUSSINET BLUE UPPER VILEBREQUIN OEM APRILIA 750 DORSODURO, SHIVER 2007-2016 (A L'UNITE)-8783940002 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/0/1/img/41501.jpg)
22 |
HALF COUSSINET JAUNE UPPER VILEBREQUIN OEM APRILIA 750 DORSODURO, SHIVER 2007-2016 (A L'UNITE)-8783940003 More informationQuantity required : 2 |
|||||||||
|
22 |
8783940004-HALF-ROULLEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/5/3/7/img/41537.jpg)
23 |
HALF COUSSINET RED LOWER VILEBREQUIN OEM APRILIA 750 DORSODURO, SHIVER 2007-2016 (A L'UNITE)-8793650001 More informationQuantity required : 2 |
|||||||||
|
23 |
COUSSINET BLUE LOWER VILEBREQUIN OEM APRILIA 750 DORSODURO, SHIVER 2007-2016 (A L'UNITE)-8793650002 More informationQuantity required : 2 |
|||||||||
|
23 |
8793650003-HALF-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
23 |
8793650004-HALF-ROULLEMENT More informationQuantity required : 2 |
|||||||||
|
24 |
876320-STUD More informationQuantity required : 2 |
|||||||||
|
25 |
873928-WASHER More informationQuantity required : 2 |
|||||||||
|
26 |
875935-BEARING More informationQuantity required : 1 |
|||||||||
