Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

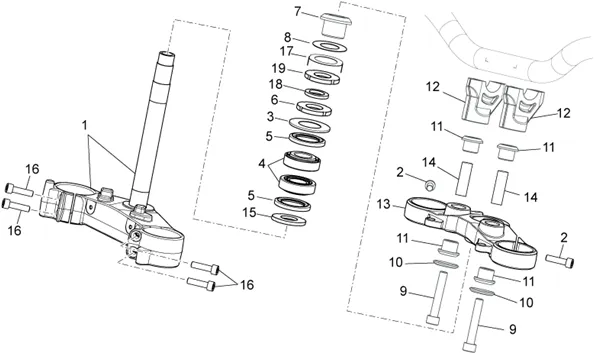

Chassis : 28.06 DIRECTION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.06.PNG)
1 |
896330-PLATE INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/4/img/71904.jpg)
2 |
SCREW BTR (8X30) DE T DE FORK OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8150540 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/2/6/img/71526.jpg)
3 |
WASHER PROTECTOR-POUSSIERE OEM APRILIA/MOTOGUZZI COMMON A LA RANGE-AP8123644 More informationQuantity required : 1 |
||||||
|
4 |
896678-BALL BEARING More informationQuantity required : 2 |
||||||
|
5 |
896260 - ANNEAU PARE-POUSS. More informationQuantity required : 2 |
||||||
|
6 |
897625-BUSH More informationQuantity required : 1 |
||||||
|
7 |
896327-CAP More informationQuantity required : 1 |
||||||
|
8 |
896961-WASHER PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/8/img/71818.jpg)
9 |
SCREW BTR (10X60) OEM PIAGGIO COMMON ALA RANGE-AP8150049 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/6/3/img/108963.jpg)
10 |
WASHER SPECIALE DE HANDLEBAR OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8123721 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/4/img/71754.jpg)
11 |
RUBBER OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-AP8144222 More informationQuantity required : 4 |
||||||
|
12 |
898419-CAVALIER INF. More informationQuantity required : 2 |
||||||
|
13 |
896338 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/8/9/3/img/39893.jpg)
14 |
SPACER (10, 1X14, 1X38) OEM PIAGGIO COMMON A LA RANGE-854827 More informationQuantity required : 2 |
||||||
|
15 |
897626-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/2/img/71842.jpg)
16 |
SCREW BTR (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8150236 More informationQuantity required : 4 |
||||||
|
17 |
896684-PLATE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/5/7/5/img/42575.jpg)
18 |
WASHER RUBBER DE STEERING OEM APRILIA 1200 DORSODURO 2010 > 2016-896685 More informationQuantity required : 1 |
||||||
|
19 |
896683-CONTRE-BUSH More informationQuantity required : 1 |
