Vehicle Exploded View - APRILIA DORSODURO 1200 2010-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

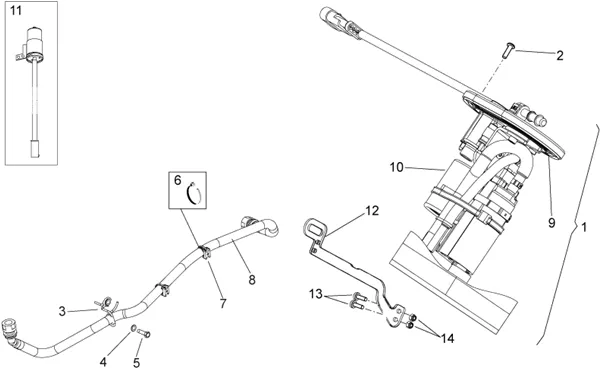

Chassis : 28.13 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.13.PNG)
1 |
894785-ENSEMBLE PUMP More informationQuantity required : 1 |
||||||
|
1 |
B043926 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
2 |
SCREW FLANGE TH (5X15) OEM PIAGGIO COMMON A LA RANGE-AP8152273 More informationQuantity required : 6 |
||||||
|
3 |
AP8181139-PROTECTOR-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
4 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
5 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 1 |
||||||
|
6 |
AP8102386-FASCETTA IN NYLON NERA More informationQuantity required : 2 |
||||||
|
7 |
896675-BRACKET More informationQuantity required : 2 |
||||||
|
8 |
894671-FUEL HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/8/img/73408.jpg)
9 |
GASKET OF FUEL PUMP OEM PIAGGIO APRILIA 750-1100-1200 DORSODURO, 750-900 SHIVER/MOTO-GUZZI 1400 CALIFORNIA, AUDACE, 750 BREVA, NEVADA, V11-GU01107490 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/6/img/73406.jpg)
10 |
FUEL FILTER OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-GU01106090 More informationQuantity required : 1 |
||||||
|
11 |
899069-DETECTEUR More informationQuantity required : 1 |
||||||
|
12 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/2/img/46742.jpg)
13 |
SCREW BTR HEAD BOMBEE (4X14) OEM PIAGGIO COMMON A LA RANGE-AP8121184 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
14 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
