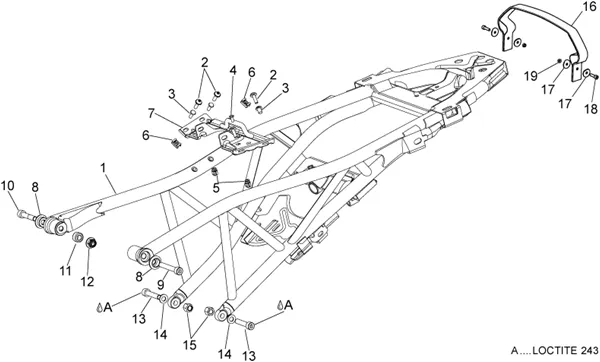

Chassis : 28.03 ACCROCHE-SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/292/Dorsoduro_1200_2010-2013_28.03.PNG)
1 |
896002-ACCROCHE-SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/3/8/8/img/42388.jpg)
2 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A A LA RANGE-895915 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/2/img/72142.jpg)
3 |
RIVET FILETE (M5) OEM PIAGGIO COMMON A LA RANGE-AP8201755 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/7/img/71887.jpg)
4 |
SCREW CRUCIFORME (3. 9X10) TARAUD STAINLESS STEEL FOR PLASTIQUE OEM PIAGGIO COMMON A LA RANGE-AP8150444 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/1/img/71191.jpg)
5 |
RIVET EN PLASTIQUE CARROSSERIE OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8102671 More informationQuantity required : 2 |
||||||
|
6 |
896675-BRACKET More informationQuantity required : 4 |
||||||
|
7 |
896331-FRAME REAR SIDE More informationQuantity required : 1 |
||||||
|
8 |
860909-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/7/img/71817.jpg)
9 |
SCREW BTR (8X55) OEM PIAGGIO COMMON A LA RANGE-AP8150046 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/6/8/img/66568.jpg)
10 |
SCREW BTR (8X67) OEM PIAGGIO COMMON A LA RANGE-478761 More informationQuantity required : 1 |
||||||
|
11 |
854962-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
|
13 |
890638 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/9/img/71809.jpg)
14 |
WASHER PLATE (8. 4X16X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150017 More informationQuantity required : 2 |
||||||
|
15 |
AP8152350-NUT More informationQuantity required : 2 |
||||||
|
16 |
898025-BELT SEAT More informationQuantity required : 1 |
||||||
|
17 |
890486-PLATE SEAT More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/5/img/71815.jpg)
18 |
SCREW BTR (6X20) OEM PIAGGIO COMMON A LA RANGE-AP8150044 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
19 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
