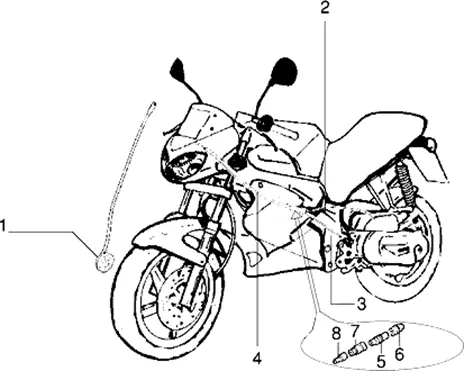

Vehicle Exploded View - GILERA DNA 50 GILERA

Transmisisons : T38 TRANSMISSIONS
Transmissions
Search
CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER (CODEUR) SCOOT OEM PIAGGIO 50 NRG 2006 >, 125-250-500 X9/GILERA 50-125 RUNNER, DNA-56435R

1
P2R reference P2R reference 67052
Maker reference Maker reference 56435R

CABLE/CONTROL/TRANSMISSION DE INSTRUMENT CLUSTER (CODEUR) SCOOT OEM PIAGGIO 50 NRG 2006 >, 125-250-500 X9/GILERA 50-125 RUNNER, DNA-56435R

More information

Quantity required : 1

THROTTLE CABLE KIT (DISPATCHER TO CARB) "PIAGGIO GENUINE PARTS" GILERA 50 DNA -582870-

2
P2R reference P2R reference 81836
Maker reference Maker reference 582870

THROTTLE CABLE KIT (DISPATCHER TO CARB) "PIAGGIO GENUINE PARTS" GILERA 50 DNA -582870-

More information

Quantity required : 1

THROTTLE CABLE KIT (DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PARTS" 50 TYPHOON 2006>2010/GILERA 50 DNA -582449

3
P2R reference P2R reference 81761
Maker reference Maker reference 582449

THROTTLE CABLE KIT (DISPATCHER TO OIL PUMP) "PIAGGIO GENUINE PARTS" 50 TYPHOON 2006>2010/GILERA 50 DNA -582449

More information

Quantity required : 1

581903 - TRANSMISS. DE GAZ MODELE LONG

4
P2R reference P2R reference 81667
Maker reference Maker reference 581903

581903 - TRANSMISS. DE GAZ MODELE LONG

More information

Quantity required : 1

DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571

5
P2R reference P2R reference 66083
Maker reference Maker reference 269571

DEDOUBLEUR/REPARTITEUR OEM PIAGGIO 50 ZIP, FLY, LIBERTY, NRG/GILERA 50 STALKER, RUNNER (ENSEMBLE DE 3 PIECES-WITHOUT LES PROTECTIONS)-269571

More information

Quantity required : 1

PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976

6
P2R reference P2R reference 66108
Maker reference Maker reference 271976

PROTECTOR DE REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271976

More information

Quantity required : 1

PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977

7
P2R reference P2R reference 66109
Maker reference Maker reference 271977

PROTECTOR DU REPARTITEUR DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-271977

More information

Quantity required : 1

8
P2R reference P2R reference
Maker reference Maker reference 2695625

9
P2R reference P2R reference
Maker reference Maker reference 5827975
