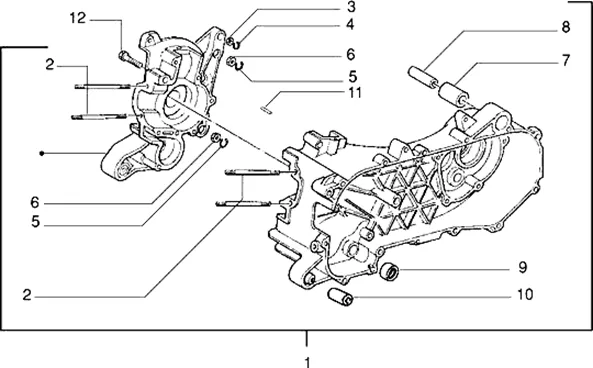

Vehicle Exploded View - GILERA DNA 50 GILERA

Moteur : T2 CARTER
Carter
Search
CM1275035 - CARTER

1
P2R reference P2R reference 96015
Maker reference Maker reference CM1275035

CM1275035 - CARTER

More information

Quantity required : 1

STUD DE CYLINDER SCOOTER OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-1A003633R

2
P2R reference P2R reference 70652
Maker reference Maker reference 1A003633R

STUD DE CYLINDER SCOOTER OEM PIAGGIO 50 FLY, LIBERTY, VESPA LX, VESPA SPRINT, 50 NRG, TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR, SPORT CITY ONE-1A003633R

More information

Quantity required : 4

020006 - ECROU

3
P2R reference P2R reference 65453
Maker reference Maker reference 0200065

NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020006

More information

Quantity required : 1

WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223

4
P2R reference P2R reference 66181
Maker reference Maker reference 287223

WASHER BRAKE (M6) OEM PIAGGIO COMMON A LA RANGE-287223

More information

Quantity required : 1

WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533

5
P2R reference P2R reference 65698
Maker reference Maker reference 113533

WASHER ARRET OEM PIAGGIO COMMON A LA RANGE-113533

More information

Quantity required : 2

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

6
P2R reference P2R reference 65455
Maker reference Maker reference 0200085

NUT (M8) OEM PIAGGIO COMMON A TOUTE LA RANGE-020008

More information

Quantity required : 2

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823

7
P2R reference P2R reference 66066
Maker reference Maker reference 267823

RUBBER MOUNT SHOCK ABSORBER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-267823

More information

Quantity required : 1

SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625

8
P2R reference P2R reference 66054
Maker reference Maker reference 266625

SPACER DE RUBBER MOUNT D'AMORTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-266625

More information

Quantity required : 1

GASKET ETANCHEITE WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-4352035

9
P2R reference P2R reference 66469
Maker reference Maker reference 4352035

GASKET ETANCHEITE WATER PUMP OEM PIAGGIO 50 NRG 2005 >, ZIP SP 2006 >/GILERA 50 RUNNER 2005 >, DNA 2000 >/APRILIA 50 SR H2O 2000 > LIQUIDE-4352035

More information

Quantity required : 1

RUBBER MOUNT CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-266773

10
P2R reference P2R reference 66056
Maker reference Maker reference 266773

RUBBER MOUNT CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-266773

More information

Quantity required : 2

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

11
P2R reference P2R reference 66417
Maker reference Maker reference 431860

BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860

More information

Quantity required : 1

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

12
P2R reference P2R reference 72769
Maker reference Maker reference B017632

SCREW FLANGE TH (6X45) OEM PIAGGIO COMMON A LA RANGE-B017632

More information

Quantity required : 8
