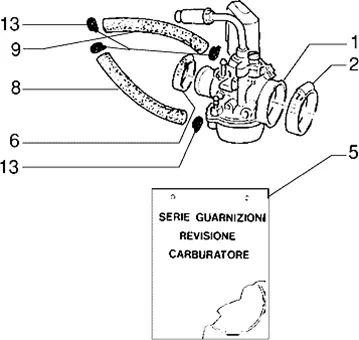

Vehicle Exploded View - GILERA DNA 50

	P2R reference
	Maker reference	833752

Carburateur

	P2R reference	65699
	Maker reference	113903

COUDE DE CABLE DE THROTTLE ON CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-113903

	P2R reference	92754
	Maker reference	82730R

82730R - CARBURATEUR

	P2R reference	69145
	Maker reference	840454

840454 - CARBURATEUR

	P2R reference	66415
	Maker reference	431654

COVER BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE-431654

	P2R reference	66017
	Maker reference	257134

HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134

	P2R reference	66626
	Maker reference	482942

SPRING DE BOISSEAU OEM PIAGGIO 50 TYPHOON, ZIP, LIBERTY, NRG, FLY/DERBI SENDA 2000 >/GILERA 50 RCR, SMT, STALKER, RUNNER-482942

	P2R reference
	Maker reference	288883

CAPUCHON

	P2R reference	73087
	Maker reference	CM105905

STARTER OEM PIAGGIO 50 ZIP 2000 >, TYPHOON, NRG, LIBERTY, VESPA LX 2005 >, PRIMAVERA 2013 > VESPA-S 2007 >, SPRINT 2014 >/GILERA 50 STALKER, RUNNER 2005 >/APRILIA 50 SR MOTARD, SRH2O-CM105905

	P2R reference	66972
	Maker reference	498409

POCHETTE/KIT JOINTS DE CARBURETTOR DELORTO OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T (POCHETTE)-498409

	P2R reference	66228
	Maker reference	289575

SCREW PLATE CARBURETTOR OEM PIAGGIO COMMON A LA RANGE-289575

	P2R reference	68569
	Maker reference	825865

825865-CIRCLIPS

	P2R reference	66201
	Maker reference	288863

PLATE DE MAINTIEN STARTER OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-288863

	P2R reference	66202
	Maker reference	288865

SCREW TFR (5X14) OEM PIAGGIO COMMON A LA RANGE-288865

	P2R reference	66781
	Maker reference	488139

488139-TUBE

	P2R reference	73146
	Maker reference	CM128501

POINTEAU OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM128501

	P2R reference	66657
	Maker reference	484260

HOSE BY PASS CYLINDER HEAD-CARBU OEM PIAGGIO 50 NRG 2005 >-484260

	P2R reference	66200
	Maker reference	288862

SCREW OF MOUNTING CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-288862

	P2R reference	66664
	Maker reference	484704

CUVE CARBURETTOR SCOOTER OEM PIAGGIO 50 ZIP, NRG, LIBERTY, TYPHOON, FLY, VESPA LX, VESPA-S,/GILERA 50 RUNNER, STALKER, SMT, RCR/APRILIA 50 SR, DERBI SENDA-484704

	P2R reference	66625
	Maker reference	482916

FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916

	P2R reference	66209
	Maker reference	288881

SPINDLE FLOTTEUR PHVA OEM PIAGGIO COMMON A LA RANGE-288881

	P2R reference	72888
	Maker reference	CM002901

HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901

	P2R reference	66414
	Maker reference	431635

431635 - GICLEUR STARTER

	P2R reference	73045
	Maker reference	CM101704

HAND OPEN FACE (53) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-CM101704

	P2R reference	73046
	Maker reference	CM101707

CM101707-GICL. MAXI

	P2R reference	73120
	Maker reference	CM112001

CM112001-TUBE VIDANGE CUVETTE

	P2R reference	73181
	Maker reference	CM141710

VOLET/BOISSEAU DE THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-CM141710

	P2R reference	65670
	Maker reference	0852855

SPRING SCREW AIR OEM PIAGGIO COMMON A LA RANGE-085285

	P2R reference	65751
	Maker reference	152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

	P2R reference	66208
	Maker reference	288880

SCREW REGLAGE DE THROTTLE OEM PIAGGIO 50 TYPHOON, LIBERTY, ZIP, NRG 1998 > 2004/GILERA 50 STALKER, RUNNER, DNA 2005 <-288880

	P2R reference	73102
	Maker reference	CM107701

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM107701

	P2R reference	73100
	Maker reference	CM107510

CARBURETTOR NEEDLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 2T-CM107510

	P2R reference	66204
	Maker reference	288872

CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872

	P2R reference	66205
	Maker reference	288873

BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873

	P2R reference	73067
	Maker reference	CM102103

GICLEUR DE RALENTI OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-CM102103

	P2R reference	73179
	Maker reference	CM141701

CM141701-VOLET DE THROTTLE

	P2R reference	66423
	Maker reference	432456

SCREW OF CARBURETTOR FLOAT BOWL OEM PIAGGIO COMMON A LA RANGE-432456
