Vehicle Exploded View - GILERA DNA 50
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

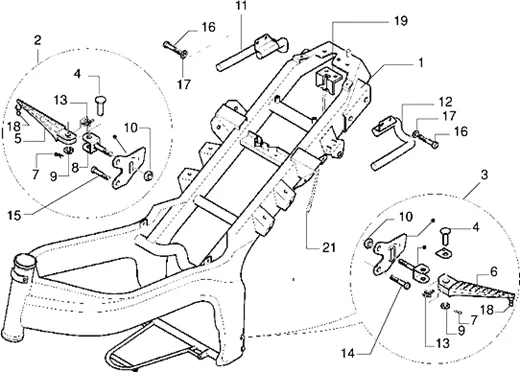

Châssis : T20 CHÂSSIS-BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/170/DNA_50_T20.PNG)
1 |
9703685 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
FOOTREST FRONT RIGHT OEM PIAGGIO 50-125 DNA-CM012502 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/0/4/img/95104.jpg)
3 |
FOOTREST FRONT LEFT OEM PIAGGIO 50-125 DNA-CM012501 More informationQuantity required : 1 |
||||||
|
4 |
965576 - PIVOT More informationQuantity required : 2 |
||||||
|
5 |
RIGHT RIDER FOOTREST "PIAGGIO GENUINE PART" GILERA 50 DNA -9430174 More informationQuantity required : 1 |
||||||
|
6 |
FOOTREST PILOTE LEFT OEM PIAGGIO GILERA 50 DNA-9430164 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/2/img/63782.jpg)
7 |
GOUPILLE OEM PIAGGIO COMMON A LA RANGE-003208 More informationQuantity required : 2 |
||||||
|
9 |
006177-WASHER S00617700 More informationQuantity required : 2 |
||||||
|
10 |
967356-NUT More informationQuantity required : 2 |
||||||
|
11 |
970228-GRIP More informationQuantity required : 1 |
||||||
|
12 |
970225-GRIP More informationQuantity required : 1 |
||||||
|
13 |
RESSORT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/6/img/65396.jpg)
14 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-015792 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/4/6/0/img/82460.jpg)
15 |
SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-599009 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
16 |
SCREW TH (8X16) OEM PIAGGIO COMMON A LA RANGE-031116 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/5/6/7/img/78567.JPG)
17 |
WASHER ELASTIC (8X14X2) OEM PIAGGIO COMMON A LA RANGE HISTORIQUE < 2005-431744 More informationQuantity required : 4 |
||||||
|
18 |
AXE |
||||||
|
19 |
CM023702 - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
20 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 2 |
||||||
|
21 |
970163-TRANSMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/9/9/1/img/80991.jpg)
22 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" PIAGGIO GILERA 50-125 DNA -576910 More informationQuantity required : 1 |
||||||
|
22 |
576911 - REPOSE PIEDS DX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/9/3/img/68593.jpg)
23 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-826298 More informationQuantity required : 1 |
