Vehicle Exploded View - GILERA DNA 50 GILERA

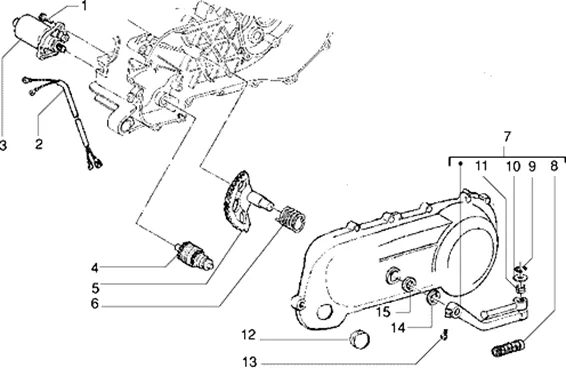

Moteur : T11 DEMARREUR ELECTRIQUE-LEVIER DE DEMARRAGE
Demarreur electrique-Levier de demarrage
Search
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

1
P2R reference P2R reference 65642
Maker reference Maker reference 0310915

SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091

More information

Quantity required : 2

639856 - FAISCEAU CABLES

2
P2R reference P2R reference 67858
Maker reference Maker reference 639856

639856-WIRING HARNESS

More information

Quantity required : 1

STARTER MOTOR OEM PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T-82530R

3
P2R reference P2R reference 68531
Maker reference Maker reference 82530R

STARTER MOTOR OEM PIAGGIO 50 TYPHOON, FLY, LIBERTY, NRG, VESPA LX, PRIMAVERA, VESPA-S, SPRINT 2T/GILERA 50 STALKER, RUNNER 2T/APRILIA 50 SR-MOTARD, SR H2O, SCARABEO 2T-82530R

More information

Quantity required : 1

LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82958R

4
P2R reference P2R reference 66164
Maker reference Maker reference 286174

LANCEUR/RENVOI DE STARTER MOTOR OEM PIAGGIO 50 2T ZIP, TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX-82958R

More information

Quantity required : 1

SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458

5
P2R reference P2R reference 68967
Maker reference Maker reference 831458

SPINDLE KICK OEM PIAGGIO 50 FLY 2T ET 4T, LYBERTY 2T ET 4T, NRG, TYPHOON, VESPA LX 2T ET 4T/GILERA 50 DNA, STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY-831458

More information

Quantity required : 1

SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495

6
P2R reference P2R reference 66223
Maker reference Maker reference 289495

SPRING RAPPEL DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-289495

More information

Quantity required : 1

KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214

7
P2R reference P2R reference 66168
Maker reference Maker reference 286214

KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214

More information

Quantity required : 1

PROTECTOR/RUBBER DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286217

8
P2R reference P2R reference 66169
Maker reference Maker reference 286217

PROTECTOR/RUBBER DE KICK OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286217

More information

Quantity required : 1

CLIPS/CIRCLIPS KICK OEM PIAGGIO COMMON A LA RANGE-288041

9
P2R reference P2R reference 66185
Maker reference Maker reference 288041

CLIPS/CIRCLIPS KICK OEM PIAGGIO COMMON A LA RANGE-288041

More information

Quantity required : 1

286219 - RONDELLE

10
P2R reference P2R reference 66170
Maker reference Maker reference 286219

286219-WASHER

More information

Quantity required : 1

KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214

11
P2R reference P2R reference 66168
Maker reference Maker reference 286214

KICK DE DEMARRAGE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-286214

More information

Quantity required : 1

CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859

12
P2R reference P2R reference 66646
Maker reference Maker reference 483859

CAP/OBTURATEUR COVER TRANSMISSION OU LEG SHIELD INNER ZIP OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 1998 > 2004-483859

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

13
P2R reference P2R reference 72720
Maker reference Maker reference 414837

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

13
P2R reference P2R reference 72720
Maker reference Maker reference B016774

SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774

More information

Quantity required : 1

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

14
P2R reference P2R reference 63814
Maker reference Maker reference 0064165

CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416

More information

Quantity required : 1

WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987

15
P2R reference P2R reference 66443
Maker reference Maker reference 433987

WASHER SHAFT OF KICK (16, 3X23, 8) OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-433987

More information

Quantity required : 1

SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080

16
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080

More information

Quantity required : 1

SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080

17
P2R reference P2R reference 65617
Maker reference Maker reference 0300805

SCREW TH (8X70) OEM PIAGGIO COMMON A LA RANGE-030080

More information

Quantity required : 1
