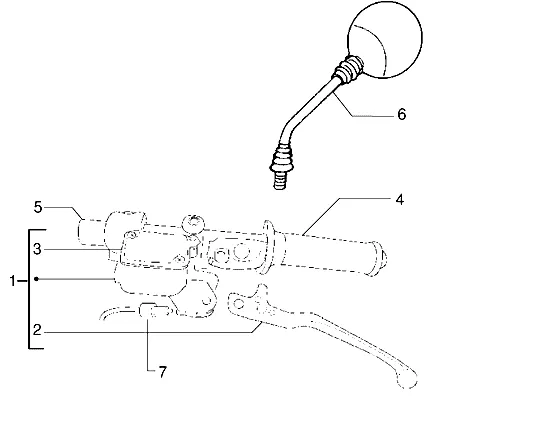

Vehicle Exploded View - GILERA DNA 50 GILERA

Guidon : T35 MAÎTRE CYLINDRE
Maître cylindre
Search
BRAKE MASTER CYLINDER LEFT OEM PIAGGIO 125-250 BEVERLY 2005 >, 300 BEVERLY 2009 >, 125-250 CARNABY 2007 >/GILERA 125-250-300 NEXUS 2006 >, 500 FUOCO 2013 >/GILERA 50-125 DNA 2000 >-56360R

1
P2R reference P2R reference 79921
Maker reference Maker reference 56360R

BRAKE MASTER CYLINDER LEFT OEM PIAGGIO 125-250 BEVERLY 2005 >, 300 BEVERLY 2009 >, 125-250 CARNABY 2007 >/GILERA 125-250-300 NEXUS 2006 >, 500 FUOCO 2013 >/GILERA 50-125 DNA 2000 >-56360R

More information

Quantity required : 1

BRAKE LEVER MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 400 X-EVO/GILERA 500 NEXUS, FUOCO RIGHT/LEFT (BREMBO)-646829

2
P2R reference P2R reference 86642
Maker reference Maker reference 646829

BRAKE LEVER MAXI SCOOTER OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 400 X-EVO/GILERA 500 NEXUS, FUOCO RIGHT/LEFT (BREMBO)-646829

More information

Quantity required : 1

BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" 125-250-400-500 BEVERLY, 400 X8, 125-250-500 X9/GILERA 500 NEXUS -497032-

3
P2R reference P2R reference 79413
Maker reference Maker reference 497032

BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" 125-250-400-500 BEVERLY, 400 X8, 125-250-500 X9/GILERA 500 NEXUS -497032-

More information

Quantity required : 1

581900 - POIGNEE

4
P2R reference P2R reference 67233
Maker reference Maker reference 581900

581900 - POIGNEE

More information

Quantity required : 1

970006 - GUIDON G

5
P2R reference P2R reference 94060
Maker reference Maker reference 970006

970006-HANDLEBAR G

More information

Quantity required : 1

583111 - RETROVISEUR

6
P2R reference P2R reference 81870
Maker reference Maker reference 583111

583111 - RETROVISEUR

More information

Quantity required : 2

REARVIEW MIRRORS

6
P2R reference P2R reference
Maker reference Maker reference 583133

REARVIEW MIRRORS

INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953

7
P2R reference P2R reference 67189
Maker reference Maker reference 580953

INTERRUPTEUR LAMP STOP OEM PIAGGIO 50 NRG, ZIP, TYPHOON, LIBERTY, 125 X9, VESPA LXV, 250-300 VESPA GTV/APRILIA 50 SR H2O, 125 ATLANTIC, RS, SPORT-CITY/GILERA 50 STALKER-580953

More information

Quantity required : 1
