Vehicle Exploded View - GILERA DNA 50
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

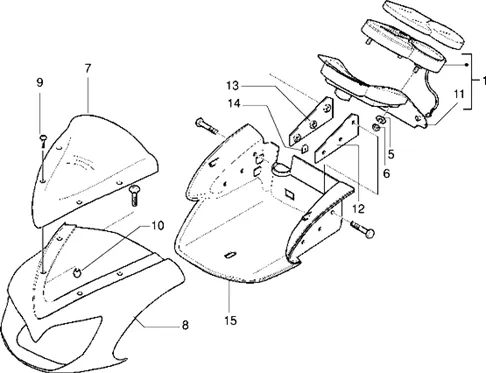

Guidon : T33 GR. INSTRUMENTS-CARENAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/170/DNA_50_T33.PNG)
0 |
DECOR JAUNE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/0/1/img/67101.jpg)
0 |
CLAMP MOUNTING WIRING OU HOSE OEM PIAGGIO COMMON A LA RANGE-573918 More informationQuantity required : 1 |
||||||
|
0 |
|
||||||
|
1 |
9701990090 - COMPTEUR DNA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/9/4/1/9/img/79419.jpg)
2 |
CUVELAGE DE INSTRUMENT CLUSTER GREY OEM PIAGGIO GILERA 50-125 DNA-497045 More informationQuantity required : 1 |
||||||
|
3 |
DASHBOARD GLASS "PIAGGIO GENUINE PARTS" GILERA 50-125 DNA -497046- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/5/img/65345.jpg)
5 |
WASHER EVENTAIL (6, 6X11X0) OEM PIAGGO COMMON A LA RANGE-012533 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
6 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 3 |
||||||
|
7 |
970093 - PARE BRISE More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA RAW TO BE PAINT -9700895- More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA RED 894 -97008950R7- More informationQuantity required : 1 |
||||||
|
8 |
FRONT SHIELD - "PIAGGIO GENUINE PART" GILERA 50 DNA BLACK 94 -9700895090- More informationQuantity required : 1 |
||||||
|
8 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/6/img/81516.jpg)
9 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-581176 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/4/img/67204.jpg)
10 |
INSERT MOUNTING SAUTE VENT OEM PIAGGIO 50 NRG, TYPHOON 2005 >, 300 YOURBAN/GILERA 50 RUNNER 2005 >-581174 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/4/0/7/5/img/94075.jpg)
11 |
DASHBOARD BACK SUPPORT "PIAGGIO GENUINE PART" GILERA 50-125 DNA -970090000C- More informationQuantity required : 1 |
||||||
|
12 |
970197 - ETRIER More informationQuantity required : 1 |
||||||
|
13 |
970198 - ETRIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
|
15 |
COVER LOWER DE HEAD OF FORK OEM PIAGGIO GILERA 50-125 DNA-9701960090 More informationQuantity required : 1 |
