Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

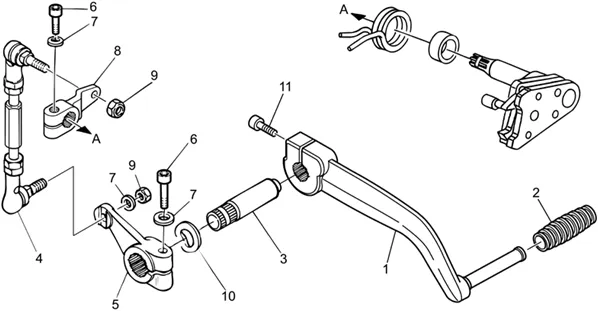

Moteur : 34.17 LEVIER BOÎTE DE VITESSES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_34.17.PNG)
1 |
GU32250911-LEVER BOX OF VITESSES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
2 |
RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189 More informationQuantity required : 1 |
||||||
|
3 |
GU32251610 - GOUJON DE LEVIER More informationQuantity required : 1 |
||||||
|
4 |
GU32257810-TIRANT FOR BOX SPEED CPL. More informationQuantity required : 1 |
||||||
|
5 |
GU32256910-LEVER More informationQuantity required : 1 |
||||||
|
6 |
GU98632322-SCREW M6X22 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/7/6/img/102376.jpg)
7 |
WASHER ELASTIC (6. 4X12) OEM PIAGGIO COMMON A LA RANGE-GU03013800 More informationQuantity required : 3 |
||||||
|
8 |
GU32258210-LEVER DE CONTROL More informationQuantity required : 1 |
||||||
|
9 |
GU92630707-NUT M6X1 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/6/img/132756.jpg)
10 |
WASHER ELASTIC OEM MOTO GUZZI COMMON A LA RANGE-GU95129260 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/2/img/133182.jpg)
11 |
GU98682322 - VIS M6X22 More informationQuantity required : 1 |
