Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

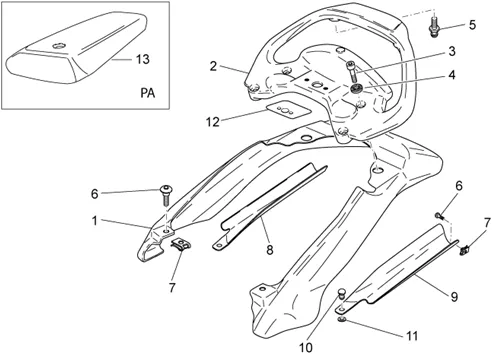

Chassis : 33.30 CARROSSERIE ARRIÉRE - DES.SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_33.30.PNG)
1 |
|
||||||
|
1 |
GU32573112-FAIRING AR. BLACK More informationQuantity required : 1 |
||||||
|
1 |
GU32573113-TAIL AR. GRISE More informationQuantity required : 1 |
||||||
|
1 |
GU32573114-FAIRING AR. RED More informationQuantity required : 1 |
||||||
|
1 |
977322-CODONE NERO 2006 BREVA 750 More informationQuantity required : 1 |
||||||
|
1 |
977458-CODONE AZZURRO BREVA 750 More informationQuantity required : 1 |
||||||
|
1 |
GU32472681-CODONE POST BIANCO BREVA PA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/6/2/5/img/131625.jpg)
1 |
FAIRING REAR UNPAINTED OEM PIAGGIO MOTO-GUZZI 750 BREVA 2003 > 2009-GU32573110 More informationQuantity required : 1 |
||||||
|
2 |
977302-MANIGLIA POST. GRIGIA More informationQuantity required : 1 |
||||||
|
2 |
GU32464310-GRIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/1/0/img/67410.jpg)
3 |
SCREW BTR (8X30) OEM PIAGGIO COMMON A LA RANGE-600123 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/6/4/6/img/110646.jpg)
4 |
WASHER SPRING (8. 4X15X1. 5) OEM PIAGGIO COMMON A LA RANGE-658837 More informationQuantity required : 4 |
||||||
|
5 |
GU03467343 - COLONNETTA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
6 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
7 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 4 |
||||||
|
8 |
GU32479611-SCREW More informationQuantity required : 1 |
||||||
|
9 |
GU32479610-CONTENANT DOOR-OUTILS G. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/2/img/72282.jpg)
10 |
AP8220396 - TIGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/6/img/71406.jpg)
11 |
WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592 More informationQuantity required : 2 |
||||||
|
12 |
GU32944210-DECAL PROTECT. More informationQuantity required : 1 |
||||||
|
13 |
GU32472881-COVER CODONE BIANCO BREVA PA More informationQuantity required : 1 |
