Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

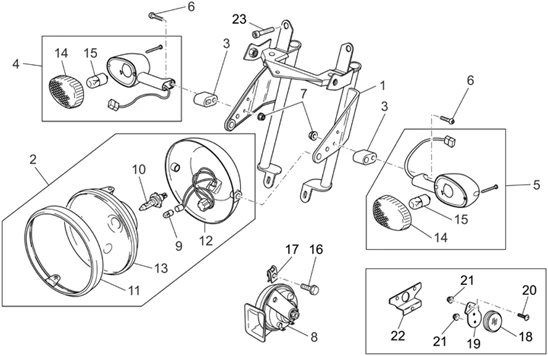

Chassis : 33.42 FEUX AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_33.42.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/6/0/0/img/131600.jpg)
1 |
BRACKET LAMP UNIT OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, V7-GU32506360 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/6/img/67886.jpg)
2 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 250-500 BEVERLY/MOTO-GUZZI 750 BREVA, NEVADA, 1100 V11-640541 More informationQuantity required : 1 |
||||||
2 |
GU32740511 - PROJECTEUR AV.COMPLET GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
GU32753410 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/6/img/73486.jpg)
4 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA 2003>2009/APRILIA 1000 TUONO 2006>2009 -GU32750610 More informationQuantity required : 1 |
||||||
|
4 |
FLASHER-FRONT-RIGHT/REAR-LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA 2003>2009/APRILIA 1000 TUONO 2006>2009 -GU32751611- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/8/8/img/73488.jpg)
5 |
FRONT LEFT INDICATOR/REAR RIGHT OEM PIAGGIO MOTO-GUZZI 750 BREVA 2003 > 2009/APRILIA 1000 TUONO 2006 > 2009-GU32751610 More informationQuantity required : 1 |
||||||
|
5 |
GU32751611-CLIGNOT. AV. GA./ARR. DR. More informationQuantity required : 1 |
||||||
|
6 |
GU98370655-SCREW M6X55 More informationQuantity required : 2 |
||||||
|
7 |
GU92630206-NUT M6X1 More informationQuantity required : 2 |
||||||
|
8 |
GU32743710-HORN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
9 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE OEM PIAGGIO COMMON A LA RANGE-2920225 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/5/6/img/66256.jpg)
10 |
AMPOULE/LAMPE 12V 60/55W H4 OEM PIAGGIO COMMON A LA RANGE-292723 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/8/9/img/67889.jpg)
11 |
ENTOURAGE DE HEADLAMP CHROME MOTO-GUZZI 750 V7, NEVADA, BREVA, 1100 GRISO, V11, 940 BELLAGIO/PIAGGIO 250-500 BEVERLY CRUISER 2007 > 2012-640598 More informationQuantity required : 1 |
||||||
|
12 |
Calotte av.noir |
||||||
|
13 |
LAMP UNIT/HEADLAMP/HEADLAMP OEM PIAGGIO 250-500 BEVERLY/MOTO-GUZZI 750 BREVA, NEVADA, 1100 V11-640541 More informationQuantity required : 1 |
||||||
|
13 |
GU32740411-GROUP LAMP UNIT COMPLETE LEFT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/7/5/2/img/131752.jpg)
14 |
GU32753711-VITRE INDICATOR More informationQuantity required : 2 |
||||||
|
14 |
GU32753710 - VITRE CLIGNOTANT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
15 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
|
15 |
GU93450127-LAMPE (OU AMPOULE) 12V-10W More informationQuantity required : 2 |
||||||
|
16 |
GU97202420-SCREW FLANGE M8X20 More informationQuantity required : 1 |
||||||
|
17 |
GU01576530-NUT CLAMP M8X1, 25 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/4/img/72324.jpg)
18 |
CATADIOPTRE ROND AMBRE OEM PIAGGIO COMMIUN A LA RANGE-AP8224163 More informationQuantity required : 2 |
||||||
|
19 |
AP8148587-AR. BRACKET CATADIOPTRE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/4/img/71924.jpg)
20 |
SCREW BTR HEAD BOMBEE (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152174 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
21 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 4 |
||||||
|
22 |
GU32781810-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/3/8/img/133238.jpg)
23 |
SCREW BTR (10X40) OEM PIAGGIO COMMON A LA RANGE-GU98880540 More informationQuantity required : 2 |
