Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

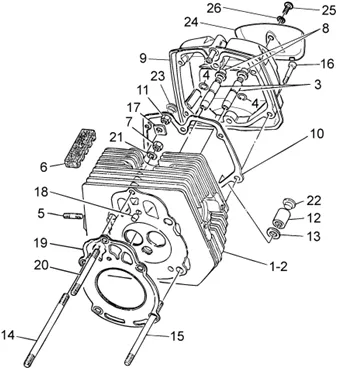

Moteur : 34.03 TÊTE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_34.03.PNG)
1 |
GU32022110 - CULASSE D.GRIS More informationQuantity required : 1 |
||||||
|
2 |
GU32022210-CYLINDER HEAD G. GREY More informationQuantity required : 1 |
||||||
|
3 |
GU61036801 - GUIDE SOUPAPE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/0/img/132150.jpg)
4 |
CLIPS/CIRCLIPS (12. 5X1. 5) VALVE OEM MOTO GUZZI-GU90353009 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/1/1/img/132811.jpg)
5 |
STUD (6X42) OEM PIAGGIO COMMON A LA RANGE-GU96506042 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/4/img/129464.jpg)
6 |
PLATE ANTIVIBRATILE OEM MOTO GUZZI COMMON A LA RANGE-GU19025300 More informationQuantity required : 4 |
||||||
|
7 |
GU19021920-NUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/5/img/129475.jpg)
8 |
OIL SEAL GUIDE DE VALVE OEM PIAGGIO MOTO-GUZZI 750 BREVA, NEVADA, STRADA, V7-GU19037820 More informationQuantity required : 4 |
||||||
|
9 |
GU32023610 - COUVRE-CULASSE More informationQuantity required : 2 |
||||||
|
9 |
GU320236601-COVER-CYLINDER HEAD More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/8/8/img/99288.jpg)
10 |
GASKET COVER DE CYLINDER HEAD OEM PIAGGIO FOR MOTORCYCLE-GUZZI 750 BREVA, NEVADA, V-7-887002 More informationQuantity required : 2 |
||||||
|
11 |
GU92603010 - ECROU M10X1,5 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/7/img/129157.jpg)
12 |
NUT COLONNE DE STEERING OU DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU13021900 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
13 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 4 |
||||||
|
14 |
GU96510214-SCREW WITHOUT HEAD M10X214 More informationQuantity required : 4 |
||||||
|
15 |
GU96510181-SCREW WITHOUT HEAD M10X182 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/1/1/img/133211.jpg)
16 |
GU98692325-SCREW TCEI M6X25 More informationQuantity required : 10 |
||||||
|
17 |
GU19032980-CALE More informationQuantity required : 4 |
||||||
|
18 |
GU19021360-BUSH More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/5/2/img/129952.jpg)
19 |
CYLINDER HEAD GASKET OEM PIAGGIO MOTO-GUZZI 750 NEVADA, BREVA, V7-GU27022060 More informationQuantity required : 2 |
||||||
|
20 |
976898-PRIGIONIERO M8X140 PREIMPREGNATO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
21 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
22 |
CAP OBTURATEUR ORINE MOTO GUZZI COMMON A LA RANGE-GU93180245 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/5/img/71745.jpg)
23 |
RUBBER DE SILENCER EXHAUST OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/3/7/7/img/131377.jpg)
24 |
ENJOLIVEUR DE COVER CULBUTEUR OEM PIAGGIO MOTO-GUZZI 750 V7, BREVA, NEVADA-GU32023410 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
25 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
26 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
