Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

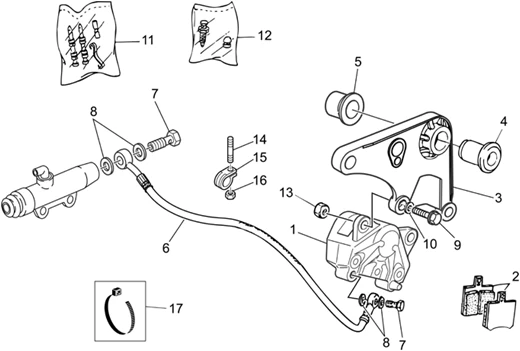

Chassis : 33.38 PINCE FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_33.38.PNG)
1 |
GU32653010 - PINCE FREIN AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/3/4/img/131234.jpg)
2 |
BRAKE PAD REAR OEM PIAGGIO MOTO-GUZZI 750 BREVA 2003 > 2009, 750 NEVADA 2002 >, 750 V-7 2008 > (PAIRE)-GU31654681 More informationQuantity required : 1 |
||||||
|
3 |
GU326358601-PLAQ. FIX PINCE BRAKE More informationQuantity required : 1 |
||||||
|
4 |
GU31634281-BUSH More informationQuantity required : 1 |
||||||
|
5 |
GU32634111-SPACER More informationQuantity required : 1 |
||||||
|
6 |
GU32657510-TUBE BRAKE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
7 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/3/img/71953.jpg)
9 |
SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8152291 More informationQuantity required : 2 |
||||||
|
10 |
GU95008308-WASHER More informationQuantity required : 2 |
||||||
|
11 |
GU31659181-KIT PLAQUETTES More informationQuantity required : 1 |
||||||
|
12 |
GU31659281-PURGE + CAPUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 2 |
||||||
|
14 |
GU96451316-SCREW WITHOUT HEAD More informationQuantity required : 2 |
||||||
|
15 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
||||||
|
16 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 2 |
||||||
|
17 |
GU49609601-CLAMP 2, 4X92 More informationQuantity required : 1 |
