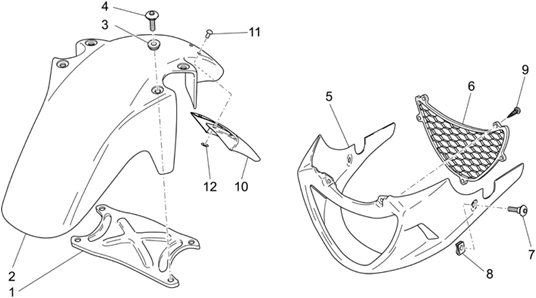

Chassis : 33.27 CARROSSERIE AV. - GARDE-BOUE AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_33.27.PNG)
1 |
PLATE JONCTION FOURREAU DE FORK OEM PIAGGIO APRILIA PEGASO 650 2005 > 2009/MOTO GUZZI BREVA 750 2003 > 2009-GU32494010 More informationQuantity required : 1 |
||||||
|
2 |
977312 - PARAFANGO ANT NERO 2006 BREVA 750 More informationQuantity required : 1 |
||||||
|
2 |
977457 - PARAFANGO ANT AZZURRO BREVA 750 More informationQuantity required : 1 |
||||||
|
2 |
GU32434310 - GARDE-BOUE AV.BRUT More informationQuantity required : 1 |
||||||
|
2 |
Garde-boue AV rouge |
||||||
|
2 |
GU32434381 - GARDE-BOUE AV More informationQuantity required : 1 |
||||||
|
3 |
GU91120812-BUSH More informationQuantity required : 4 |
||||||
|
4 |
SCREW BTR SPECIALE HEAD BOMBEE (8X25) OEM MOTO GUZZI COMMON A LA RANGE-GU98370825 More informationQuantity required : 4 |
||||||
|
5 |
GU32570510-BUTEE FAIRING More informationQuantity required : 1 |
||||||
|
6 |
GU32571510-GRILLE PRISE AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
7 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
9 |
SCREW CRUCIFORME (3. 9X7. 5) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150420 More informationQuantity required : 5 |
||||||
|
10 |
884177-(*) PARASPRUZZI ANT BREVA MAURITIUS More informationQuantity required : 1 |
||||||
|
10 |
GU32436910 - BAVETTE ANTI-ECLABOUSSURES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/5/0/img/71750.jpg)
11 |
RIVET MOUNTING FAIRING OEM PIAGGIO APRILIA 50-125 RS, TUONO, 1000 CAPONORD, RSV-2, ATLANTIC, SCARABEO-AP8144109 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
12 |
WASHER ELASTIC (5) OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150450 More informationQuantity required : 1 |
