Vehicle Exploded View - MOTO-GUZZI BREVA 750 Breva IE 750 2003-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

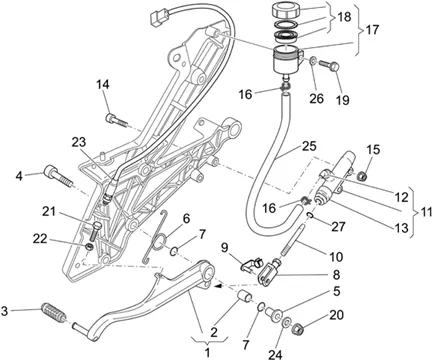

Chassis : 33.37 MAÎT.CYL. FREIN AR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/465/Breva_IE_750_2003-2009_33.37.PNG)
1 |
GU32677011-BRAKE LEVER AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/3/img/72273.jpg)
3 |
RUBBER OF GEAR LEVER OEM PIAGGIO APRILIA 50-125 RS, CLASSIC, 125 FUTURA, 600-650 PEGASO/MOTO-GUZZI 750 BREVA-AP8220189 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/2/img/133162.jpg)
4 |
SCREW BTR (8X50) OEM PIAGGIO COMMON A LA RANGE-GU98680450 More informationQuantity required : 1 |
||||||
|
5 |
GU32678110-BUSH More informationQuantity required : 1 |
||||||
|
6 |
GU32639510-SPRING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/3/8/img/71738.jpg)
7 |
O-RING (11, 11X1, 78) OEM PIAGGIO COMMON A LA RANGE-AP8144007 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
8 |
FOURCHETTE ROD OF CONTROL DE BRAKE MASTER CYLINDER REAR OEM PIAGGIO COMMON A ALA RANGE MOTO-AP8101968 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/2/9/img/72129.jpg)
9 |
AGRAPHE/CLIP ROD OF MAITRE CYLINDER REAR OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8201301 More informationQuantity required : 1 |
||||||
|
10 |
GU32675210-POUSSOIR CDE MAI-CYL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/6/4/img/73464.jpg)
11 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO MOTO-GUZZI PEGASO, BREVA, NTX, QUOTA-GU30667030 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/7/img/72197.jpg)
12 |
FITTING OF PUMP BRAKE REAR OEM APRILIA/MOTO-GUZZI COMMON A LA RANGE-AP8213057 More informationQuantity required : 1 |
||||||
|
13 |
SOUFFLET EN RUBBER ROD OF PUMP BRAKE REAR APRILIA/MOTO GUZZI-AP8113288 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
14 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
15 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/5/img/71155.jpg)
16 |
CLAMP HOSE (10, 1) OEM PIAGGIO COMMON A LA RANGE-AP8101595 More informationQuantity required : 2 |
||||||
|
17 |
AP8133873-TANK OIL FRENI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/0/6/img/71306.jpg)
18 |
CAP BOCAL DE BRAKE MASTER CYLINDER OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 125 MX, RS, 650 PEGASO, 1000 RSN-2, 1200 CAPONORD, DORSODURO-AP8113553 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
19 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-AP8152272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/3/8/img/132538.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-GU92660208 More informationQuantity required : 1 |
||||||
|
21 |
GU98084330-SCREW M6X30 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
22 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
|
22 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150026 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/1/img/71281.jpg)
23 |
CONTACTEUR LAMP STOP REAR OEM PIAGGIO 1000 CAPONORD, FUTURA, 1000 RSV-2, RSV-4, 750 SHIVER/MOTO-GUZZI 1100-1200 BREVA, GRISO, 1200 SPORT, STELVIO, 850-1200 NORGE, 940 BELLAGIO-AP8112996 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
24 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 1 |
||||||
|
25 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
26 |
GU95021206-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/7/img/71387.jpg)
27 |
O-RING MAITRE CYLINDER REAR (OR112) OEM PIAGGIO COMMON A LA RANGE-AP8120178 More informationQuantity required : 1 |
