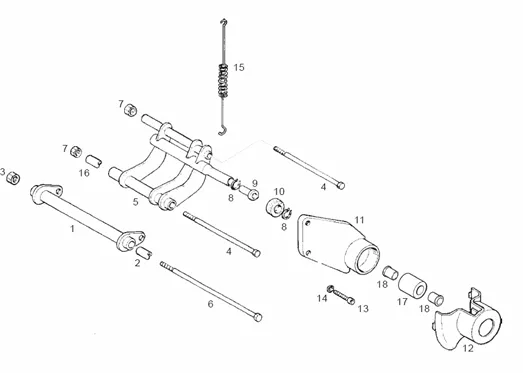

Suspensions - roues : 25 FOURCHE ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1136/Boulevard_125-150_E2_2004-2007_(EMEA_NAFTA)_25.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/7/8/img/127178.jpg)
1 |
OEM MOPED SWINGARM COTE CADRE OEM PIAGGIO 50-125 FLY 2006 > 2011/GILERA 125 RUNNER-56341R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/6/img/72976.jpg)
2 |
SPACER (L = 215) OEM MOPED SWINGARM OEM PIAGGIO 50-125 FLY 4T, 50 ZIP 4T/GILERA 125 RUNNER-CM067802 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
3 |
NUT (M10) DE SECURITE OEM PIAGGIO COMMON A LA RANGE-231370 More informationQuantity required : 1 |
||||||
4 |
00G02500271 - VIS TETE CREUSE 10M150X45D912 More informationQuantity required : 1 |
||||||
|
5 |
597498 - BRAS OSCILLANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/4/2/img/67042.jpg)
6 |
SPINDLE/SCREW OEM MOPED SWINGARM OEM PIAGGIO 50-125 FLY, LIBERTY, 50 TYPHOON, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD-563977 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
7 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/4/img/63814.jpg)
8 |
CLIPS/CIRCLIPS (14. 6) OEM PIAGGIO COMMON A TOUTE LA RANGE-006416 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/6/img/66126.jpg)
9 |
BUSH FOR RUBBER MOUNT DE OEM MOPED SWINGARM ENGINE OEM PIAGGIO COMMON A LA RANGE-273460 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/6/img/66116.jpg)
10 |
RUBBER MOUNT ENGINE OEM PIAGGIO 125-250 MP3 2007 >, 125 X8 2004 >, X9 2003 >, X-EVO 2007 >, X10 2012 >, VESPA GTS 2007 >/GILERA 125-250 NEXUS 2007 >, RUNNER 2005 >/APRILIA 125 SR-MAX 2011 >-272750 More informationQuantity required : 1 |
||||||
|
11 |
564877 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/7/3/img/67073.jpg)
12 |
COVER OEM MOPED SWINGARM OEM PIAGGIO 125 LIBERTY CORPORATE-564662 More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/6/img/63596.jpg)
14 |
WASHER PLATE (8. 4X15. 8X1. 5) OEM PIAGGIO COMMON A LA RANGE-00000031080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/3/img/67063.jpg)
15 |
SPRING DE OEM MOPED SWINGARM OEM PIAGGIO 125 HEXAGON, SKIPPER-564556 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/7/5/img/72975.jpg)
16 |
SPACER OEM MOPED SWINGARM (L183MM) OEM PIAGGIO 125-250-300-400-500 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC-CM067801 More informationQuantity required : 1 |
||||||
|
17 |
RUBBER MOUNT ENGINE OEM PIAGGIO 125-250 MP3 2007 >, 125 X8 2004 >, X9 2003 >, X-EVO 2007 >, X10 2012 >, VESPA GTS 2007 >/GILERA 125-250 NEXUS 2007 >, RUNNER 2005 >/APRILIA 125 SR-MAX 2011 >-272750 More informationQuantity required : 1 |
||||||
|
18 |
BUSH FOR RUBBER MOUNT DE OEM MOPED SWINGARM ENGINE OEM PIAGGIO COMMON A LA RANGE-273460 More informationQuantity required : 1 |
