Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125-150 E2 2004-2007 (EMEA NAFTA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

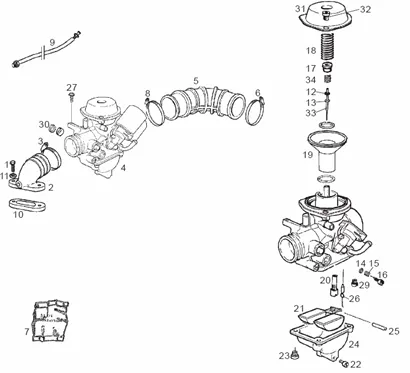

Moteur : 22A CARBURATEUR WALBRO
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1136/Boulevard_125-150_E2_2004-2007_(EMEA_NAFTA)_22A.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
1 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/6/2/img/109062.jpg)
1 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 1 |
||||||
|
1 |
SCREW TORX (6X25) OEM PIAGGIO COMMON A LA RANGE-1A000352 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/0/3/img/69603.jpg)
2 |
FITTING/MANIFOLD INTAKE MAXI SCOOTER OEM PIAGGIO 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA S/APRILIA 125 SPORT-CITY, SR-MOTARD, MOJITO (FITTING)-849465 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
3 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
4 |
CM129206 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/9/img/73149.jpg)
4 |
CARBURETTOR CVEK-2600A OEM PIAGGIO 125 FLY 2000 > 2007, LIBERTY 2000 > 2007, VESPA LX 2000 >/APRILIA 125 MOJITO 2003 > 2007-CM129213 More informationQuantity required : 1 |
||||||
|
4 |
CM129206 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
4 |
CM115003 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/3/img/68683.jpg)
5 |
827676 - MANCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
6 |
HOSE CLAMP NYLON TYPE RILSAN 4, 8X270MM OEM PIAGGIO COMMON A LA RANGE-257134 More informationQuantity required : 1 |
||||||
|
7 |
494921 - JEU DE JOINTS More informationQuantity required : 1 |
||||||
|
8 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/0/img/68860.jpg)
9 |
RESISTOR OF CARBURETTOR OEM PIAGGIO 50-125 FLY 2005 > 2011, VESPA LX 2005 >, VESPA-S 2007 >, LIBERTY 2006 > 2016-82961R6 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/3/4/6/img/70346.jpg)
10 |
GASKET MANIFOLD/FITTING INTAKE OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX/APRILIA 125 SPORT-CITY 2015 <-871167 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
11 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
|
12 |
826822 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
13 |
826821 - RONDELLE More informationQuantity required : 1 |
||||||
|
14 |
826843 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/2/6/img/68626.jpg)
15 |
826839 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/9/4/img/73094.jpg)
16 |
CARB AIR SCREW "PIAGGIO GENUINE PART" 125 LIBERTY, HEXAGON, X9 -CM106401 More informationQuantity required : 1 |
||||||
|
17 |
826820 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
|
18 |
CM106601 - RESSORT More informationQuantity required : 1 |
||||||
|
18 |
CM106602 - RESSORT More informationQuantity required : 1 |
||||||
|
19 |
CM140501 - MEMBRANE More informationQuantity required : 1 |
||||||
|
20 |
CM105301 - GICLEUR RALENTI More informationQuantity required : 1 |
||||||
|
20 |
CM105303 - GIGLEUR MIN 33 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/8/img/68618.jpg)
21 |
FLOTTEUR OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-826812 More informationQuantity required : 1 |
||||||
|
22 |
826857 - VIS More informationQuantity required : 1 |
||||||
|
23 |
826770 - VIS More informationQuantity required : 1 |
||||||
|
24 |
CM109808 - CUVETTE More informationQuantity required : 1 |
||||||
|
25 |
826811 - GOUPILLE More informationQuantity required : 1 |
||||||
|
26 |
826786 - POINTEAU ESSENCE More informationQuantity required : 1 |
||||||
|
27 |
826824-SCREW More informationQuantity required : 1 |
||||||
|
28 |
CM106602 - RESSORT More informationQuantity required : 1 |
||||||
|
28 |
CM106601 - RESSORT More informationQuantity required : 1 |
||||||
|
29 |
CM105403 - GICLEUR More informationQuantity required : 1 |
||||||
|
29 |
CM105401 - JET MAXIMUM More informationQuantity required : 1 |
||||||
|
30 |
CM140501 - MEMBRANE More informationQuantity required : 1 |
||||||
|
30 |
|
||||||
|
30 |
CM140501 - MEMBRANE More informationQuantity required : 1 |
||||||
|
31 |
826783 - COUVERCLE SOUPAPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/4/img/68614.jpg)
32 |
SCREW - FOR CARB COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC -826780 More informationQuantity required : 1 |
||||||
|
33 |
826819 - POINTEAU CON. More informationQuantity required : 1 |
||||||
|
33 |
CM106503 - POITEAU CON. More informationQuantity required : 1 |
||||||
|
34 |
826818 - RESSORT More informationQuantity required : 1 |
