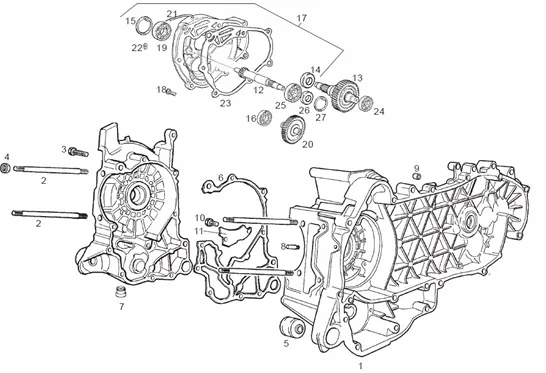

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125-150 E2 2004-2007 (EMEA NAFTA)

	P2R reference	73251
	Maker reference	CM1485135001

CM1485135001-CASING

	P2R reference	73254
	Maker reference	CM1485135002

COMPLETE CRANKCASE "PIAGGIO GENUINE PART" 125 MP3, X8, X-EVO, X9, FLY, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC (CLASSE-2 DIA 32,959/32,959 MM) -CM1485205002-

	P2R reference	109025
	Maker reference	1A003628R

STUD DE CYLINDER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 250-300 CC-1A003628R

	P2R reference	72705
	Maker reference	B016425

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

	P2R reference	66444
	Maker reference	434078

434078 - ECROU

	P2R reference	66704
	Maker reference	486081

RUBBER MOUNT DE CASING ENGINE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-486081

	P2R reference	70573
	Maker reference	875111

GASKET OF CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-875111

	P2R reference	72673
	Maker reference	B015433

CAP (M12X1. 5X11) OEM PIAGGIO COMMON A LA RANGE-B015433

	P2R reference	66654
	Maker reference	484034

BUSE CASING MOREUR OEM PIAGGIO COMMON A LA RANGE-484034

	P2R reference	72696
	Maker reference	B015956

BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956

	P2R reference	109024
	Maker reference	1A003111

SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111

	P2R reference	69013
	Maker reference	832715

PLATE FOR JOUE FIXE VARIATOR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 ENGINE LEADER-832715

	P2R reference	70505
	Maker reference	8738745

FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, MP3, FLY, TYPHOON, VESPA GTS, VESPA LX, VESPA-S, X8, X9, X-EVO/GILERA 125 NEXUS, RUNNER/APRILIA 125 MOJITO, SR-MOTARD -8738745

	P2R reference	139487
	Maker reference	1A0016695

1A0016695 - AXE ROUE

	P2R reference	68644
	Maker reference	8270885

REAR WHEEL AXLE "PIAGGIO GENUINE PART" 125 FLY 2007>, X8 STREET -8270885-

	P2R reference	68807
	Maker reference	82899R

OIL SEAL (35X47X7) SHAFT DE REAR WHEEL OEM PIAGGIO 125 FLY, LIBERTY, VESPA LX, VESPA-S, X8 STREET/GILERA 125 RUNNER, DNA/APRILIA 125 MOJITO-82899R

	P2R reference	63826
	Maker reference	0066525

CLIPS/CIRCLIPS (52X56, 2X2) OEM PIAGGIO COMMON A LA RANGE-006652

	P2R reference	68899
	Maker reference	83018R

BEARING (15X42X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-83018R

	P2R reference	155246
	Maker reference	1A0092775

1A0092775-COVER REDUCTEUR

	P2R reference	72730
	Maker reference	B016805

SCREW FLANGE TH (8X45) OEM PIAGGIO COMMON A LA RANGE-B016805

	P2R reference	139412
	Maker reference	4789845

BEARING (25X52X15) WHEEL MAXI SCOOTER OEM GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/VESPA LX, LXV, S 125-4789845

	P2R reference	66700
	Maker reference	4859955

4859955-SHAFT DE RENVOI

	P2R reference	68570
	Maker reference	8258745

8258745-SHAFT DE RENVOI

	P2R reference	73335
	Maker reference	CM162202

TUBE/CONDUIT DE PURGE ORIGINIE PIAGGIO COMMON A LA RANGE-CM162202

	P2R reference	66767
	Maker reference	487948

487948-CLAMP

	P2R reference	69548
	Maker reference	847930

GASKET CASING CABLE MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >-847930

	P2R reference	68899
	Maker reference	83018R

BEARING (15X42X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-83018R

	P2R reference	69082
	Maker reference	833701

BEARING (20X47X14) DE REDUCTEUR (EX833701) OEM PIAGGIO COMMON A LA RANGE-1A024412R

	P2R reference	68775
	Maker reference	82878R

GASKET SHAFT TRANSMISSION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82878R

	P2R reference	72699
	Maker reference	B015959

CLIPS/CIRCLIPS (25X26, 9X1, 2) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-B015959
