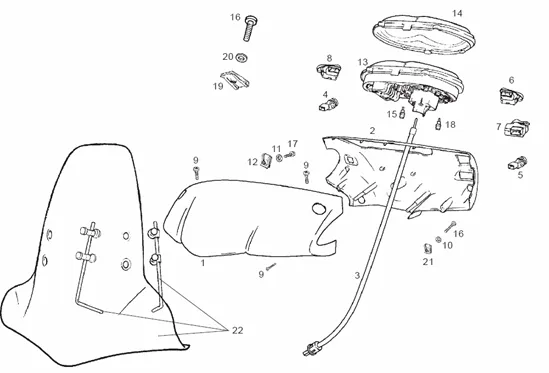

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125-150 E2 2004-2007 (EMEA NAFTA)

	P2R reference	194525
	Maker reference	00G01013518

00G01013518 - CACHE DIRECTION AV.

	P2R reference	194526
	Maker reference	86240700WA1

86240700WA1 - CARCASA.ANT.AZL.GRG.BLVD 06

	P2R reference	194527
	Maker reference	00G010135155

00G010135155 - CACHE DIRECTION AV.

	P2R reference	194528
	Maker reference	86240700WG5

86240700WG5 - CARCASA.ANT.GRS.MTL.BLVD 06

	P2R reference	194529
	Maker reference	00G010135175

00G010135175 - CACHE DIRECTION AV.

	P2R reference	194530
	Maker reference	00G01013516

00G01013516 - CACHE DIRECTION AV.

	P2R reference	194531
	Maker reference	00G01014521

00G01014521-COVER STEERING AR.

	P2R reference	194532
	Maker reference	00G01608021

00G01608021-CABLE INSTRUMENT CLUSTER

	P2R reference	67177
	Maker reference	58058R

BUTTON/SWITCH AVERTISSEUR OEM PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT LEFT-58058R

	P2R reference	187394
	Maker reference	00G02101631

00G02101631 - ENSEMBLE COMMUTATEUR DEMARRAGE

	P2R reference	67982
	Maker reference	642670

SWITCH CODE/HEADLAMP OEM PIAGGIO 125-250-300-400 500 MP3 2008 > 2014, 125-250-400 X8 2004 > 2006, X9, X-EVO 2007 >, BEVERLY/GILERA 125 RUNNER 4T, 500 FUOCO/APRILIA 125-250-400 SCARABEO-642670

	P2R reference	67984
	Maker reference	6426795

SWITCH INDICATOR SCOOT OEM PIAGGIO 50 ZIP, TYPHOON, FLY, LYBERTY, 125-250-400 MP3, BEVERLY, X-EVO, X8/GILERA 50 STALKER, RUNNER/APRILIA 50 SR-6426795

	P2R reference	66271
	Maker reference	294340

SWITCH ECLAIRAGE SCOOT OEM PIAGGIO 125-250-500 X9, 125 HEXAGON/GILERA 50 STALKER-294340

	P2R reference	194533
	Maker reference	00G02302161

00G02302161 - COMMUTATEUR STOP

	P2R reference	63683
	Maker reference	000110518015

SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801

	P2R reference	69496
	Maker reference	847226

WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226

	P2R reference
	Maker reference	031040

VIS

	P2R reference	194436
	Maker reference	00G01501371

00G01501371 - ECROU D4,2 MIK 212846

	P2R reference	194534
	Maker reference	00G01632522

00G01632522 - ENSEMBLE COMPTEUR MPH

	P2R reference	194535
	Maker reference	00G01627522

00G01627522 - ENSEMBLE COMPTEUR KMH

	P2R reference	194536
	Maker reference	00G01607071

00G01607071 - GLACE COMPTEUR KILOMETRIQUE

	P2R reference	64003
	Maker reference	00G01602581

00G01602581-R-DOOR-LAMPES

	P2R reference	63702
	Maker reference	000121515005

00012151500-SCREW A HEAD RONDE A FENTES C

	P2R reference	63689
	Maker reference	000112413005

00011241300-BOLT

	P2R reference	64002
	Maker reference	00G01601581

00G01601581-R-DOOR-LAMPES

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference	69480
	Maker reference	847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

	P2R reference	64119
	Maker reference	00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

	P2R reference
	Maker reference	00G01505751

PARE-BRISE AVANT
