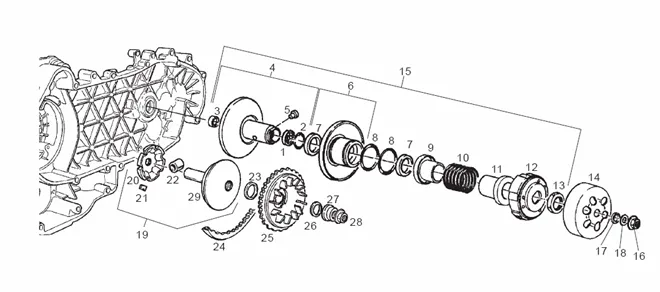

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125-150 E2 2004-2007 (EMEA NAFTA)

	P2R reference	68523
	Maker reference	82518R

CAGE A AIGUILLES (20X29X18) DE TORQUE DRIVER OF TORQUE MAXI SCOOTER OEM PIAGGIO COMMON A LA RANGE 125-250-300-82518R

	P2R reference	66629
	Maker reference	483226

CLIPS/CICLIPS DE PULLEY ENTRAINEE OEM PIAGGIO 125-250-300-483226

	P2R reference	68677
	Maker reference	82753R

BEARING (17X30X7) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-82753R

	P2R reference	68927
	Maker reference	830580

HALF PULLEY RECEPTRICE (PARTIE FIXE) OEM PIAGGIO 125 MP3, X8, X9, X10, VESPA GTS, VESPA LX, YOURBAN, TYPHOON/GILERA 125 NEXUS, RUNNER/APRILIA 125 ATLANTIC, SCARABEO, SPORT-CITY, SR-MAX-830580

	P2R reference	68772
	Maker reference	828717

SHAFT OF GUIDAGE DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-828717

	P2R reference	70704
	Maker reference	879002

FLASQUE MOBILE DE PULLEY RECEPTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 (LIVRE WITHOUT O-RING)-879002

	P2R reference	66392
	Maker reference	431089

OIL SEAL (41X48X4) OEM PIAGGIO COMMON A LA RANGE-431089

	P2R reference	66382
	Maker reference	430585

GASKET OF PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-430585

	P2R reference	66394
	Maker reference	4310935

GUIDE INNER DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-4310935

	P2R reference	70442
	Maker reference	872877

SPRING CORRECTEUR DE COUPLE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-872877

	P2R reference	66765
	Maker reference	487936

GUIDE EXTERIEUR DE SPRING PULLEY ENTRAINEE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-487936

	P2R reference	73333
	Maker reference	CM161202

CLUTCH OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X10 2012 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125 ATLANTIC 2003-CM161202

	P2R reference	66434
	Maker reference	433232

NUT DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-433232

	P2R reference	69309
	Maker reference	8440494

TAMBOUR D'EMBRAYAGE OEM PIAGGIO 125-250-300 MP3, BEVERLY, 125-250 X8, X9-EVO, X-EVO, X7/GILERA 125-250-300 NEXUS, 125 RUNNER 4T/APRILIA 125-250-300 SPORT-CITY-ONE, ATLANTIC-8440494

	P2R reference	194551
	Maker reference	827982

827982 - POULIE

	P2R reference	73336
	Maker reference	CM162401

PULLEY RECEPTRICE OEM PIAGGIO 125 FLY 2005 >, LIBERTY 2005 >, TYPHOON 2012 >, X8 STREET 2004 > 2006, VESPA LX 2005 >, VESPA-S 2007 >/APRILIA 125 MOJITO 2003 >, SPORT-CITY ONE 2008 >-CM162401

	P2R reference	66709
	Maker reference	486324

NUT (M12X1. 25) DE PULLEY RECEPTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-486324

	P2R reference	194552
	Maker reference	482325

482325 - ENTRETOISE

	P2R reference	66132
	Maker reference	274246

WASHER (12X22X1) OEM PIAGGIO COMMON A LA RANGE-274246

	P2R reference	73231
	Maker reference	CM144401

PULLEY MOTRICE/VARIATOR OEM PIAGGIO 150 FLY 2006 >, LIBERTY 2006 >, X8 STREET 2006 >, VESPA LX 2006 >, VESPA-S 2007 >/APRILIA 150 SR-MOTARD 2012 >-CM144401

	P2R reference	73232
	Maker reference	CM144402

PULLEY MOTRICE/VARIATOR OEM PIAGGIO 125 FLY 2006 >, LIBERTY 2006 >, X8 STREET 2006 >, VESPA LX 2006 >, VESPA-S 2007 >/APRILIA 125 SR-MOTARD 2012 >, SPORT-CITY ONE 2008 >, MOJITO 2003 >-CM144402

	P2R reference	66690
	Maker reference	485710

FLASQUE A ROULEAUX PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-485710

	P2R reference	66461
	Maker reference	4348555

GUIDE/PATIN DE VARIATOR MAXI SCOOTER OEM PIAGGIO 125 MP3 2007 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, FLY 2005 >, VESPA LX 2005 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 2005 >-4348555

	P2R reference	73076
	Maker reference	CM1038015

GALET/ROLLER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 150 CC (SET OF 6)-CM1038015

	P2R reference	73078
	Maker reference	CM1038035

GALET/ROLLER OEM PIAGGIO 125 LIBERTY 2006 > 2016, FLY 2005 > 2011, X8-STREET 2006 > 2007, VESPA LX 2005 > 2014, VESPA-S 2007 >/APRILIA 125 MOJITO 2003 > (SET OF 6)-CM1038035

	P2R reference	66462
	Maker reference	434885

WASHER PLATE (17X32X1) PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-434885

	P2R reference	69179
	Maker reference	841213

BELT OEM PIAGGIO 125 LIBERTY, MP3, X7, X8, X9, X-EVO, FLY, VESPA LX, VESPA GTS, YOURBAN/APRILIA 125 ATLANTIC, SR-MAX/GILERA 125 NEXUS, RUNNER 2015 <-841213

	P2R reference	69358
	Maker reference	8456075

JOUE FIXE DE PULLEY MOTRICE OEM PIAGGIO 125 MP3 2007 >, BEVERLY 2005 >, X8 2004 >, X9 2003 >, X-EVO 2007 >, VESPA GTS 2007 >/GILERA 125 NEXUS 2007 >, RUNNER 4T 2005 >/APRILIA 125-845607

	P2R reference	66436
	Maker reference	433391

WASHER PLATE PULLEY MOTRICE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC-433391

	P2R reference	68667
	Maker reference	827386

OEM SCOOTER KICK OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-827386

	P2R reference	72693
	Maker reference	B015804

NUT IGNITION/PULLEY OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-B015804

	P2R reference	66648
	Maker reference	483889

483889-SPACER
