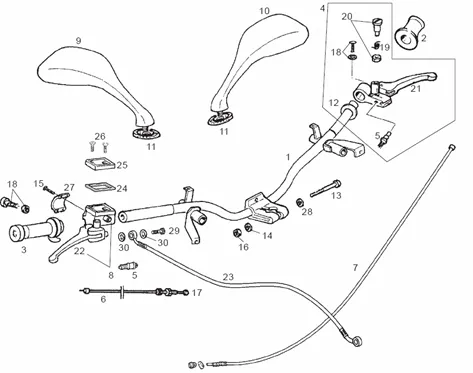

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125-150 E2 2004-2007 (EMEA NAFTA)

	P2R reference	67240
	Maker reference	5820324

5820324 - GUIDON

	P2R reference	194441
	Maker reference	00G00908071

00G00908071-ENS. GRIP THROTTLE

	P2R reference	194442
	Maker reference	00G00909081

00G00909081-ENS. GRIP THROTTLE

	P2R reference	194443
	Maker reference	00G02108611

00G02108611 - MANCHON

	P2R reference	63870
	Maker reference	00D01000701

INTERRUPTEUR DE STOP OEM PIAGGIO 50 GILERA SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA SX, RX 2006, RS 2006 > 2010-00D01000701

	P2R reference	194444
	Maker reference	00G00911171

00G00911171 - MANCH.COMM.GAZ

	P2R reference	194445
	Maker reference	00G00907431

00G00907431 - CABLE-GAINE FREIN AR.

	P2R reference	194446
	Maker reference	00G02103081

00G02103081 - MAÎTRE CYLINDRE

	P2R reference	194447
	Maker reference	00G02211671

00G02211671 - RÉTROVISEUR GAUCHE

	P2R reference	194448
	Maker reference	00G04612921

00G04612921 - RÉTROVISEUR DROITE

	P2R reference	194449
	Maker reference	00G04902341

00G04902341 - JOINT

	P2R reference	187328
	Maker reference	00G05800011

00G05800011 - DOUILLE

	P2R reference	68294
	Maker reference	655554

SCREW BTR (10X65) OEM PIAGGIO COMMON A LA RANGE-655554

	P2R reference	63597
	Maker reference	000000311005

WASHER PLATE (10. 6X20. 7X1. 8) OEM PIAGGIO COMMON A LA RANGE-00000031100

	P2R reference	63646
	Maker reference	000040616005

00004061600-SCREW

	P2R reference	66078
	Maker reference	269145

TENDEUR/SCREW OF REGLAGE CABLE (6X16) OEM PIAGGIO COMMON A LA RANGE-269145

	P2R reference	65718
	Maker reference	123394

SCREW BTR (6X17) WITH BUSH OEM PIAGGIO COMMON A LA RANGE-123394

	P2R reference	66067
	Maker reference	267948

SPRING DE BRAKE LEVER LEFT OEM PIAGGIO COMMON A LA RANGE WITH BRAKE TAMBOUR-267948

	P2R reference	66048
	Maker reference	265249

SCREW WITH NUT BRAKE LEVER OEM PIAGGIO COMMON A LA RANGE-265249

	P2R reference	67074
	Maker reference	564681

BRAKE LEVER LEFT OEM PIAGGIO 50 TYPHOON 2010 > 2017/APRILIA 50 SR MOTARD 2012 > 2017-564681

	P2R reference	194450
	Maker reference	00G00902201

00G00902201 - MANETE DU FREIN AVANT

	P2R reference	194451
	Maker reference	00H00906751

00H00906751 - FLEXIBLE DU FREIN AVANT

	P2R reference	64651
	Maker reference	00H02100861

FRONT MASTER CYLINDER GASKET "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -00H02100861

	P2R reference	64648
	Maker reference	00H02100191

FRONT BRAKE MASTER CYLINDER COVER "PIAGGIO GENUINE PART" GILERA 50 SMT-RCR 2006> -00H02100191-

	P2R reference	63886
	Maker reference	00D02100901

CAVALIER/HALF CLAMP DE BRAKE MASTER CYLINDER FRONT OEM DERBI 50 SENDA 2000 > 2010 GILERA 50 SMT, RCR 20006 > 2010-00D02100901

	P2R reference	63732
	Maker reference	000340010025

00034001002-WASHER BRAKE

	P2R reference	69958
	Maker reference	862494

862494 - R-TORNILLO RACORD HIDRAULICO

	P2R reference	70303
	Maker reference	867238

GASKET/WASHER HOSE OF BRAKE OEM PIAGGIO 50 DERBI 50 SENDA 2000 >/APRILIA RX, SX, RS, TUONO/GILERA 50 SMT, RCR-867238
