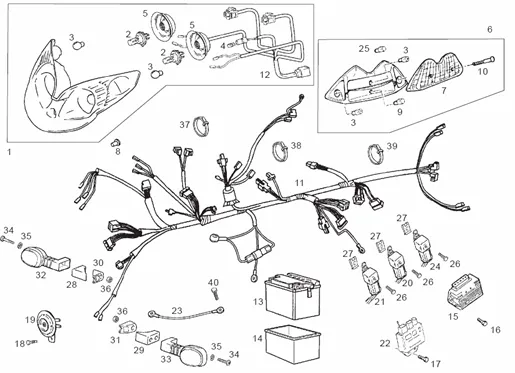

Vehicle Exploded View - DERBI BOULEVARD 125 Boulevard 125-150 E2 2004-2007 (EMEA NAFTA)

	P2R reference	194452
	Maker reference	00G02302001

00G02302001 - BLOCOPTIQUE

	P2R reference	194453
	Maker reference	00G01025011

00G01025011 - BLOCOPTIQUE

	P2R reference	194454
	Maker reference	00G02301001

00G02301001 - BLOCOPTIQUE

	P2R reference	154568
	Maker reference	00G01000131

00G01000131-AMPOULE 12V-35/35

	P2R reference	67298
	Maker reference	584332

AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332

	P2R reference	194455
	Maker reference	00G02301331

00G02301331 - AMPOULE 12V-5W

	P2R reference	194456
	Maker reference	00G05702141

00G05702141 - FAISCEAUDE CÂBLES

	P2R reference	194457
	Maker reference	00G02301601

00G02301601 - FEU AR.

	P2R reference	194458
	Maker reference	00G02302601

00G02302601 - FEU AR.

	P2R reference	194459
	Maker reference	00G01005341

00G01005341-TRANSPARENT

	P2R reference	194460
	Maker reference	00H01802751

00H01802751 - BOUCHON

	P2R reference	65799
	Maker reference	181747

181747 - AMPOULE 12V 5W

	P2R reference	66245
	Maker reference	290944

SCREW OF LAMP AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-290944

	P2R reference	194461
	Maker reference	00G01038301

00G01038301 - INSTALLATION ELECTRIQUE

	P2R reference	194462
	Maker reference	00G01035301

00G01035301 - INSTALLATION ELECTRIQUE

	P2R reference	194463
	Maker reference	00G05701011

00G05701011 - FAISCEAU PHARE TEMOIN

	P2R reference	67316
	Maker reference	584810

BATTERY 12V 9AH YB9-B OEM PIAGGIO 50-125 FLY, LIBERTY, TYPHOON, VESPA LX/GILERA 50-125 RUNNER/APRILIA 50 SR H2O, SR-MOTARD, 125 RS, SPORT-CITY-584810

	P2R reference	66312
	Maker reference	299047

COMPARTIMENT/CUVE A BATTERY OEM PIAGGIO 50-125 VESPA LX, LXV-299047

	P2R reference	67187
	Maker reference	58090R5
	Replaced by référence 221753

VOLTAGE REGULATOR- "PIAGGIO GENUINE PART" 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS -58090R5

	P2R reference	221753
	Maker reference	58090R6

REGULATEUR MAXI SCOOTER OEM PIAGGIO 125 BEVERLY, FLY, LIBERTY, MP3, X7, X8, X9, X-EVO, VESPA GTS, PRIMAVERA, VESPA SPRINT, VESPA LX/APRILIA 125 ATLANTIC, MOJITO, RS4/GILERA 125 NEXUS-58090R6

	P2R reference	65447
	Maker reference	0186395

SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639

	P2R reference	63705
	Maker reference	000121620005

00012162000-BOLT HEAD HEX. 5M80X15

	P2R reference	63705
	Maker reference	000121620005

00012162000-BOLT HEAD HEX. 5M80X15

	P2R reference	72984
	Maker reference	CM071803

AVERTISSEUR/HORN OEM PIAGGIO COMMON A LA RANGE-CM071803

	P2R reference	67258
	Maker reference	58246R

RELAIS STARTER MOTOR 12V 30A OEM PIAGGIO COMMON A TOUTE LA RANGE-58246R

	P2R reference	67203
	Maker reference	58115R

RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R

	P2R reference	67304
	Maker reference	584612

CDI OEM PIAGGIO 125 LIBERTY, FLY, SKIPPER WITH ANTIDEMARRAGE 2006 <-584612

	P2R reference	67309
	Maker reference	584701

584701-DISPOSITIF ELECTR. IMM.

	P2R reference	67212
	Maker reference	581310

581310 - PROTECTION

	P2R reference	194464
	Maker reference	00G05700711

00G05700711-RELAIS

	P2R reference	194465
	Maker reference	00G01002371

00G01002371 - AMPOULE 12V-21W

	P2R reference	63689
	Maker reference	000112413005

00011241300-BOLT

	P2R reference	194466
	Maker reference	00G01500371

00G01500371 - ECROU

	P2R reference	194467
	Maker reference	00G01700191

00G01700191 - SUP. CLIGNOTEURS DROITE

	P2R reference	194468
	Maker reference	00G01700201

00G01700201 - SUP. CLIGNOTEURS GAUCHE

	P2R reference	194469
	Maker reference	00G01700501

00G01700501 - BASE SUP. CLIGNOTEURS DROITE

	P2R reference	194470
	Maker reference	00G01700511

00G01700511 - BASE SUP. CLIGNOTEURS GAUCHE

	P2R reference	193952
	Maker reference	00G01704021

00G01704021 - CLIGNOTEURS AR. DROITE

	P2R reference	193953
	Maker reference	00G01704311

00G01704311-CLIGNOTEURS AR. LEFT

	P2R reference
	Maker reference	031059

BOULON S03105900

	P2R reference	63590
	Maker reference	000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

	P2R reference	63869
	Maker reference	00D00900531

ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531

	P2R reference	63899
	Maker reference	00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

	P2R reference	63866
	Maker reference	00A00900531

00A00900531 - COLLIER

	P2R reference	64088
	Maker reference	00G03600991

00G03600991-BOLT SERRAGE TURBINE H. (6X16
