Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

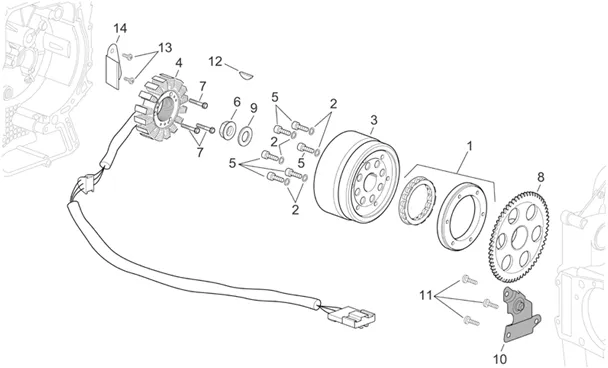

Moteur : 29.49 GROUPE ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_29.49.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/5/3/img/149153.jpg)
1 |
WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
2 |
WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515 More informationQuantity required : 6 |
||||||
3 |
58197R-ROTOR CPL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/8/5/img/67185.jpg)
4 |
STATOR OEM PIAGGIO 400-500 BEVERLY 2006 >, 400 X8, X-EVO 2007 >, 500 X9 2003 >/GILERA 500 NEXUS 2006 >/APRILIA 400 ATLANTIC 2005 >, SCARABEO 2006 >, 500 ATLANTIC, SCARABEO 2001 >-58080R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/8/img/69168.jpg)
5 |
SCREW BTR (10X25) OEM PIAGGIO COMMON A LA RANGE-840893 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/5/2/img/68652.jpg)
6 |
NUT M14 X 1, 5 OEM PIAGGIO COMMON A LA RANGE-827116 More informationQuantity required : 1 |
||||||
|
7 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-122637 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
8 |
COURONNE DE STARTER MOTOR OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7, 125-250 X8, X9, X-EVO/GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-82737R More informationQuantity required : 1 |
||||||
|
9 |
825725-WASHER More informationQuantity required : 1 |
||||||
|
10 |
828109-SHEET METAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.jpg)
11 |
SCREW CRUCIFORME (5X16) OEM PIAGGIO COMMON A LA RANGE-1A003109 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
12 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
||||||
|
13 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
13 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
14 |
830886-PLATE More informationQuantity required : 1 |
