Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

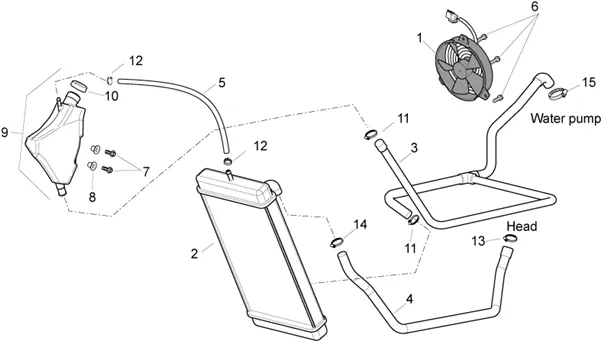

Chassis : 28.19 RADIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.19.PNG)
1 |
AP8127021 - VENTILATEUR CPL.; More informationQuantity required : 1 |
||||||
|
2 |
AP8104857 - RADIATORE GREZZO More informationQuantity required : 1 |
||||||
|
3 |
AP8144693-TUBO MANDATA RADIATORE-PUMP More informationQuantity required : 1 |
||||||
|
4 |
AP8144692 - TUBO RITORNO TESTA-RADIATORE More informationQuantity required : 1 |
||||||
|
5 |
AP8144506-HOSE RENIFLARD RADIATOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
6 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
7 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
8 |
BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075 More informationQuantity required : 2 |
||||||
|
9 |
AP8178847-VASO D'ESPANS. ASSEMB. CON CAP More informationQuantity required : 1 |
||||||
|
10 |
AP8570122-CAP VASO D'ESPANSIONE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/0/img/72870.jpg)
11 |
CLAMP HOSE (D 27. 1) OEM PIAGGIO COMMON A LA RANGE-CM001909 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
12 |
CLAMP CLIC (13X6) OEM PIAGGIO COMMON A LA RANGE-AP8102764 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
13 |
CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/7/6/img/72876.jpg)
14 |
CLAMP HOSE COOLING (28. 6 MM) OEM PIAGGIO COMMON A LA RANGE-CM001915 More informationQuantity required : 1 |
||||||
|
15 |
CM001916 - BANDE More informationQuantity required : 1 |
