Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

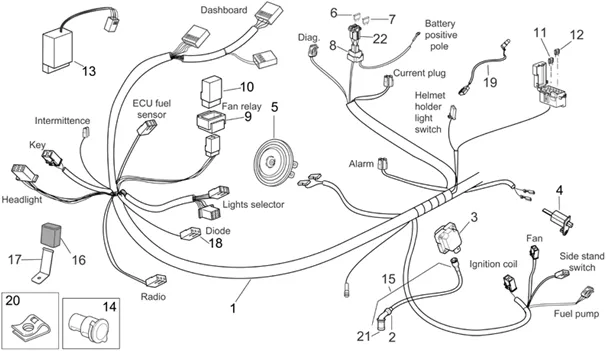

Chassis : 28.30 CIRCUIT ELECTRIQUE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.30.PNG)
1 |
AP8127672 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
|
1 |
AP8127822 - CABLAGGIO PRINCIPALE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/6/img/66266.jpg)
2 |
ANTIPARASITE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-293845 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/7/img/67207.jpg)
3 |
BOBINE IGNITION MAXI SCOOTER OEM PIAGGIO 125 VESPA GTS, VESPA LX, 300 VESPA GTS, 250-400 MP3, X8, X-EVO, 500 X-9, GILERA 125-300 SR-MAX, 500 NEXUS/APRILIA 125-250-300-400-500 ATLANTIC-58120R More informationQuantity required : 1 |
||||||
|
4 |
AP8212696 - INTERR. ECLAIR.COFFRE More informationQuantity required : 1 |
||||||
|
5 |
AP8127337-HORN More informationQuantity required : 1 |
||||||
|
6 |
495357 - FUSIBLE More informationQuantity required : 2 |
||||||
|
7 |
Fusible |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/9/img/72289.jpg)
8 |
RUBBER BRACKET RELAIS OEM PIAGGIO COMMON A LA RANGE-AP8220546 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/7/img/72277.jpg)
9 |
SANGLE RUBBER DE BLOC OEM PIAGGIO COMMON A LA RANGE-AP8220283 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/9/img/72329.jpg)
10 |
RELAIS 12V/30A OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA/MOTO-GUZZI-AP8224462 More informationQuantity required : 1 |
||||||
|
11 |
AP8127346-FUSIBLE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/9/9/img/73399.jpg)
12 |
BLADE FUSE STANDARD 15A OEM PIAGGIO COMMON A LA RANGE-CM225715 More informationQuantity required : 4 |
||||||
|
13 |
AP8104884 - STABILIZZATORE SONDA BENZINA More informationQuantity required : 1 |
||||||
|
14 |
B063212-PRISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
15 |
CABLE HAUTE TENSION OEM PIAGGIO COMMON A TOUTE LA RANGE-080341 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/3/img/71563.jpg)
16 |
CENTRE CLIGNOTANTE OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA ET MOTO 125 CC-AP8124235 More informationQuantity required : 1 |
||||||
|
17 |
AP8134967-BRACKET INTERMITTENZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/9/img/72189.jpg)
18 |
DIODE DE SECURITE OEM PIAGGIO MOTO-GUZZI 750 V7, NEVADA, BREVA/APRILIA 50-125 RS, TUONO, RX, SX, 1000 RSV-2, FALCO, 650 PEGASO, 400-500 ATLANTIC-AP8212588 More informationQuantity required : 1 |
||||||
|
19 |
AP8127719 - CABLAGGIO LUCE BAULOTTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
20 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/8/img/66508.jpg)
21 |
CAPUCHON ISOLANT ANTI PARASITE OEM PIAGGIO COMMON A LA RANGE-436919 More informationQuantity required : 1 |
||||||
|
22 |
AP8120754-RUBBER P-FUSIBLES More informationQuantity required : 1 |
