Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

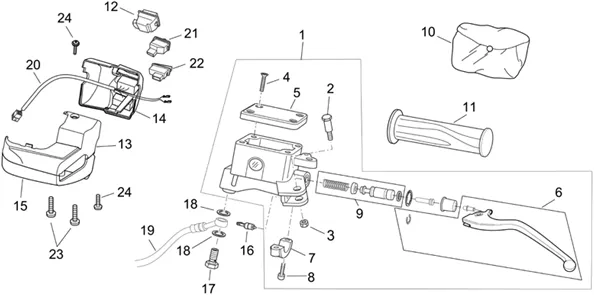

Chassis : 28.17 COMMANDES GCHE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.17.PNG)
1 |
BRAKE MASTER CYLINDER REAR OEM PIAGGIO APRILIA125 SCARABEO-AP8133558 More informationQuantity required : 1 |
||||||
|
1 |
AP8133733 - POMPA FRENO POST.SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/7/6/img/71576.jpg)
2 |
AP8125757-SCREW LEVER More informationQuantity required : 1 |
||||||
|
2 |
AP8213584-SCREW FISSAGGIO LEVA More informationQuantity required : 1 |
||||||
|
3 |
AP8213298-NUT More informationQuantity required : 1 |
||||||
|
3 |
AP8213585-DADO More informationQuantity required : 1 |
||||||
|
4 |
AP8113859 - VIS COUVERCLE POMPE; More informationQuantity required : 4 |
||||||
|
4 |
AP8133807-SCREW COVER PUMP More informationQuantity required : 4 |
||||||
|
5 |
858492-COVER PUMP More informationQuantity required : 1 |
||||||
|
5 |
AP8113860-COVER PUMP More informationQuantity required : 1 |
||||||
|
6 |
AP8118641 - LEVIER FREIN More informationQuantity required : 1 |
||||||
|
6 |
AP8133809-LEVA BRAKE * More informationQuantity required : 1 |
||||||
|
7 |
AP8113637-CAVALIER LEVER BRAKE More informationQuantity required : 1 |
||||||
|
7 |
AP8213586-CAVALLOTTO LEVA BRAKE More informationQuantity required : 1 |
||||||
|
8 |
AP8213299-SCREW CALOTTE More informationQuantity required : 2 |
||||||
|
8 |
AP8213582-SCREW CAPPELLOTTO More informationQuantity required : 2 |
||||||
|
9 |
PISTON CONTROL OF BRAKE LEFT OEM PIAGGIO 50 SR 1997 > 2012-AP8113861 More informationQuantity required : 1 |
||||||
|
10 |
MAINTENANCE KIT- FOR REAR BRAKE CALIPER "PIAGGIO GENUINE PART" APRILIA125 SCARABEO -AP8113862- More informationQuantity required : 1 |
||||||
|
10 |
AP8133810 - KIT REVISIONE POMPA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/3/8/3/img/46383.jpg)
11 |
PAIRE DE GRIP/REVETTEMENT OEM PIAGGIO APRILIA 125-250-300-400-500 ATLANTIC-AP8118656 More informationQuantity required : 1 |
||||||
|
12 |
AP8124622 - DEVIATEUR FEUX More informationQuantity required : 1 |
||||||
|
13 |
AP8158933 - COQUE SUP.G; More informationQuantity required : 1 |
||||||
|
14 |
AP8158898 - LOG.COMMANDES EL.G NOIR; More informationQuantity required : 1 |
||||||
|
15 |
AP8158931-COQUE INFERIEURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/5/8/img/67958.jpg)
16 |
CONTACTEUR LAMP STOP OEM PIAGGIO 125-500 MP3, X10, X-EVO, BEVERLY, RANGE VESPA/GILERA 125-300-500 NEXUS/APRILIA 750-900 SHIVER, DORSODURO, 125-500 SCARABEO-642032 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
17 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
18 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 2 |
||||||
|
19 |
AP8133533 - TUYAU FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
20 |
642991-WIRING CLIGNOTANTS G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/3/1/6/img/56316.jpg)
21 |
BUTTON/CONTACTEUR INDICATOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8215767 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/4/4/9/img/47449.jpg)
22 |
BUTTON/CONTACTEUR AVERTISSEUR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 APRILIA 1995 > 2009-AP8124209 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/7/img/71937.jpg)
23 |
SCREW BTR HEAD BOMBEE (5X25) OEM PIAGGIO COMMON A LA RANGE-AP8152270 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
24 |
SCREW BTR HEAD BOMBEE (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152268 More informationQuantity required : 2 |
