Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

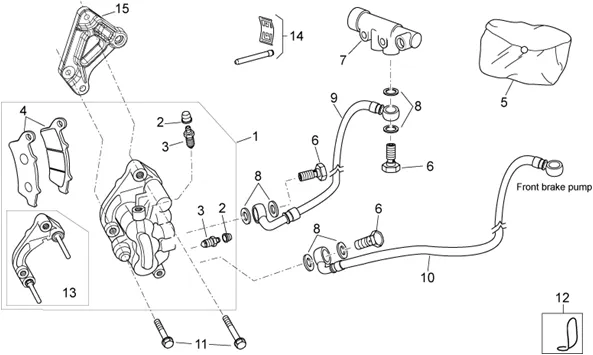

Chassis : 28.25 PINCE FREIN AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.25.PNG)
1 |
AP8133525 - PINCE FREIN AV; More informationQuantity required : 1 |
||||||
|
1 |
AP8133731 - PINZA FRENO ANT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
2 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 2 |
||||||
|
2 |
AP8133813 - CAPPUCCIO SPURGO ARIA More informationQuantity required : 2 |
||||||
|
3 |
AP8133814-SPURGO ARIA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
3 |
SCREW OF BLEEDING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER APRILIA-AP8213108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/5/5/img/71655.jpg)
4 |
BRAKE PADS -"PIAGGIO GENUINE PART" 125-250-400-500 ATLANTIC -AP8133603 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/7/6/img/71676.jpg)
4 |
BRAKE PADS FRONT OEM PIAGGIO POUE APRILIA 125-250 ATLANTIC 2003 > 2006, 400-500 ATLANTIS-SPRINT 2005 > 2008, 125-250-300 SCARABEO LIGHT (PAIRE)-AP8133815 More informationQuantity required : 1 |
||||||
|
5 |
AP8133604-KIT REVISION PINCE More informationQuantity required : 1 |
||||||
|
5 |
AP8133816-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
7 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
8 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 6 |
||||||
|
9 |
AP8133777 - TUBO RITARDATORE PINZA ANT. More informationQuantity required : 1 |
||||||
|
10 |
AP8133526 - TUBE FREIN AV; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
11 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 2 |
||||||
|
12 |
AP8121856-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
13 |
AP8133817-BRACKET PINZA ASSEMBLATO * More informationQuantity required : 1 |
||||||
|
13 |
AP8146882-BRACKET ASSEMBLATO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/9/0/img/48790.jpg)
14 |
KIT PIVOT/SPRING BRAKE CALIPER FRONT GRIMECA OEM PIAGGIO APRILIA 125-250 ATLANTIC, SCARABEO 2008 <-AP8133760 More informationQuantity required : 1 |
||||||
|
14 |
AP8133818-PERNI CON MOLLE PINZA More informationQuantity required : 1 |
||||||
|
15 |
AP8146945 - STAFFA FISSAGGIO PINZA ANT. More informationQuantity required : 1 |
