Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

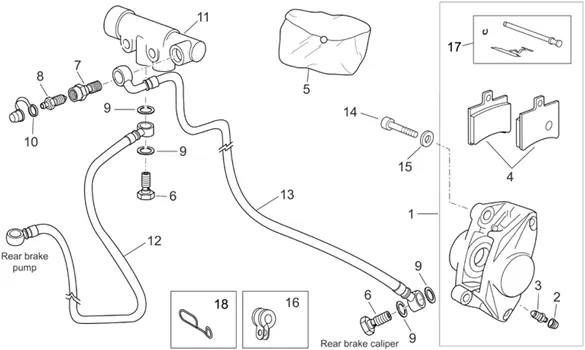

Chassis : 28.27 PINCE FREIN ARRIERE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.27.PNG)
1 |
AP8133581-PINCE BRAKE REAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/2/img/48782.jpg)
1 |
BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250 ATLANTIC-AP8133732 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
2 |
CAPUCHON RENIFLARD BRAKE CALIPER OROGINE PIAGGIO COMMON A LA RANGE 2008 <-AP8113005 More informationQuantity required : 1 |
||||||
|
2 |
AP8213575-CAPPUCCIO SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/5/img/71285.jpg)
3 |
SCREW OF PURGE OEM PIAGGIO COMMON A LA RANGE SCOOTER/MAXI SCOOTER APRILIA-AP8113006 More informationQuantity required : 1 |
||||||
|
3 |
AP8213574-SPURGO ARIA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/2/9/img/71329.jpg)
4 |
BRAKE PADS REAR OEM PIAGGIO APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO, 125 LEONARDO, SPORT CITY-STREET-AP8113869 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/1/img/72221.jpg)
4 |
BRAKE PAD REAR OEM PIAGGIO APRILIA 125-300 ATLANTIC 2010 > (PAIRE)-AP8213577 More informationQuantity required : 1 |
||||||
|
5 |
498850 - KIT REVISION ETRIER More informationQuantity required : 1 |
||||||
|
5 |
AP8213579-KIT REVISIONE PINZA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
6 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/0/0/7/img/46007.jpg)
7 |
AP8113762 - VIS PERCEE; More informationQuantity required : 1 |
||||||
|
8 |
AP8113761 - PURGE AIR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
9 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 4 |
||||||
|
10 |
AP8113230-CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/7/8/7/img/48787.jpg)
11 |
BRAKE VALVE "PIAGGIO GENUINE PART" APRILIA 125-250-400-500 ATLANTIC, SCARABEO (GRIMECA) -AP8133738 More informationQuantity required : 1 |
||||||
|
12 |
AP8133533 - TUYAU FREIN ARRIERE; More informationQuantity required : 1 |
||||||
|
13 |
AP8133950 - TUBO RITARD.PINZA POST. More informationQuantity required : 1 |
||||||
|
13 |
AP8144531-HOSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/7/img/71827.jpg)
14 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-AP8150164 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
WASHER ELASTIC COURBE (8. 5X15X0. 8) OEM PIAGGIO COMMON A LA RANGE-AP8150376 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/6/4/2/img/71642.jpg)
16 |
CLAMP GUIDE HOSE OF BRAKE OEM PIAGGIO COMMON A LA RANGE-AP8132907 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/3/1/img/71331.jpg)
17 |
AP8113871-STUD + SPRING PINCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/2/2/img/72222.jpg)
17 |
KIT SPRING BRAKE CALIPER REAR OEM PIAGGIO APRILIA 125-250-300 SPORT-CITY, ATLANTIC, SCARABEO-AP8213578 More informationQuantity required : 1 |
||||||
|
18 |
AP8202159-GUIDE-CABLE More informationQuantity required : 1 |
