Vehicle Exploded View - APRILIA ATLANTIC 500 Sprint 2005-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

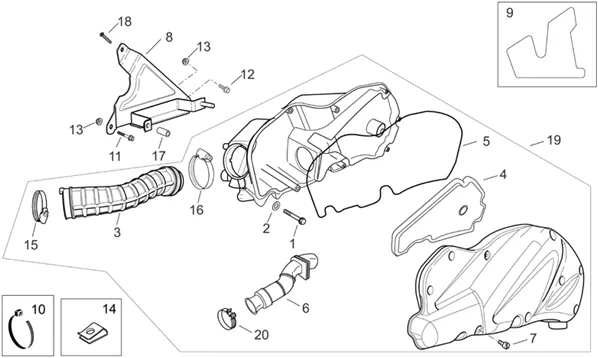

Chassis : 28.21 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_28.21.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/8/img/71838.jpg)
1 |
SCREW BTR (6X50) OEM PIAGGIO COMMON A LA RANGE-AP8150202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/7/img/71927.jpg)
2 |
WASHER PLATE (6. 4X15X1) OEM PIAGGIO COMMON A LA RANGE-AP8152181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/8/3/2/img/49832.jpg)
3 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" APRILIA 400-500 ATLANTIC SPRINT -AP8144696 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/9/7/0/img/156970.jpg)
4 |
ELEMENT/MOUSSE DE AIR FILTER (PREMIUM) MAXI SCOOTER OEM PIAGGIO 125-250-400-500 BEVERLY, X9-EVO, MP3, X10, X7, X-EVO/APRILIA ATLANTIC, SR-MAX, SPORT-CITY/GILERA NEXUS, FUOCO-8292580P More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/3/3/img/68833.jpg)
5 |
GASKET COVER AIR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-829259 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/6/img/68856.jpg)
6 |
SLEEVE ASPIRATION DE HOUSING AIR FILTER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-829543 More informationQuantity required : 1 |
||||||
7 |
Vis taraud |
||||||
|
8 |
AP8146949 - SUPPORTO CASSA FILTRO More informationQuantity required : 1 |
||||||
|
9 |
AP8117249 - PROTEZIONE CASSA FILTRO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
10 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
11 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
12 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
13 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
14 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/8/img/71178.jpg)
15 |
CLAMP (70-50X8) ORRIGINE PIAGGIO COMMON A LA RANGE-AP8102401 More informationQuantity required : 1 |
||||||
|
16 |
AP8102701 - FASCETTA D.40-60 X 9 More informationQuantity required : 1 |
||||||
|
17 |
AP8121020-SPACER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
18 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/6/6/img/70466.jpg)
19 |
HOUSING FILTER AIR OEM PIAGGIO 400-500 MP3 2007 >, BEVERLY 2005 >, 400 X-EVO 2007 >/GILERA 500 FUOCO 2007 >/APRILIA 400-500 ATLANTIC, SCARABEO 2005 > 2008-873151 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
20 |
CLAMP CLIC 35-33 OEM PIAGGIO COMMON A LA RANGE-CM001926 More informationQuantity required : 1 |
