Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

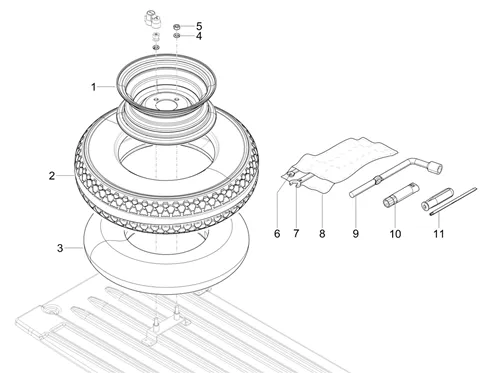

Suspensions - roues : 04.05 ROUE DE SECOURS - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/991/Ape_Calessino_200_E4_Model_Year_2019_2019-2021_04.05_20251008083028.png)
1 |
B077976 WHEEL RIM ASSEMBLY TUBELESS KLASSIC More informationQuantity required : 1 |
||||||
|
2 |
B042878 TYRE More informationQuantity required : 1 |
||||||
|
3 |
B001316 INNER TUBE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
4 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
5 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
|
6 |
567454 CLE More informationQuantity required : 1 |
||||||
|
7 |
567456 CLE More informationQuantity required : 1 |
||||||
|
8 |
B041876 TROUSSE A OUTILS More informationQuantity required : 1 |
||||||
|
9 |
B076142 L TYPE SPANNER AF 16 More informationQuantity required : 1 |
||||||
|
10 |
B041787 CLE A TUBE 16 More informationQuantity required : 1 |
||||||
|
11 |
567458 TOURNEVIS More informationQuantity required : 1 |
