Vehicle Exploded View - PIAGGIO VU APE CALESSINO 200 Ape Calessino 200 E4 Model Year 2019 2019-2021
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

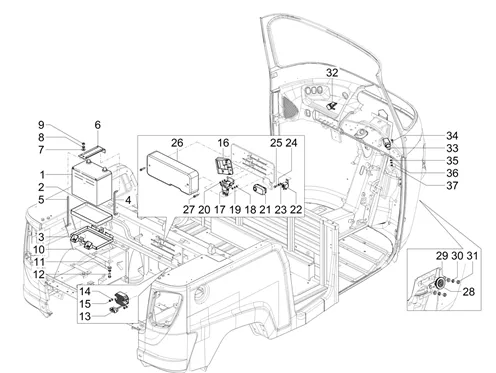

Circuit électrique : 06.07 DISPOSITIFS ÉLECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/991/Ape_Calessino_200_E4_Model_Year_2019_2019-2021_06.07_20251008083120.png)
1 |
B006544 - BATTERIE 35 AH More informationQuantity required : 1 |
||||||
|
2 |
616649 CUVE More informationQuantity required : 1 |
||||||
|
3 |
B042895 BRACKET BATTERY More informationQuantity required : 1 |
||||||
|
4 |
604954 BUFFER More informationQuantity required : 1 |
||||||
|
5 |
632508 TIRANT AR TL2 More informationQuantity required : 1 |
||||||
|
6 |
B003978 BANDEJA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/4/img/63764.jpg)
7 |
WASHER PLATE (8. 5X20X2) OEM PIAGGIO COMMON A LA RANGE-002383 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
8 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
9 |
NUT (M8X6, 5) OEM PIAGGIO COMMON A LA RANGE-020108 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
10 |
WASHER PLATE (8, 2X20X2, 5) OEM PIAGGIO COMMON A LA RANGE-013861 More informationQuantity required : 4 |
||||||
|
11 |
WASHER (8, 15X13, 75X4, 5) OEM PIAGGIO COMMON A LA RANGE-016408 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/6/img/65646.jpg)
12 |
SCREW TH (8X22) OEM PIAGGIO COMMON A LA RANGE-031119 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/3/3/1/img/120331.jpg)
13 |
REGULATEUR DE TENSION OEM PIAGGIO THREE-WHEELER APE CALESSINO 2013 >-1D000671R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
14 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
|
16 |
CM278918 - CENTRALE More informationQuantity required : 1 |
||||||
|
17 |
587671R RELAIS More informationQuantity required : 1 |
||||||
|
18 |
003055-WASHER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
19 |
WASHER GROWER (5, 1X8, 5X1, 5) OEM PIAGGIO COMMON A LA RANGE-016405 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
20 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 2 |
||||||
|
21 |
|
||||||
|
22 |
B023726R INTERMITTENCE More informationQuantity required : 1 |
||||||
|
23 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
24 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
25 |
SCREW TH (6X16) OEM PIAGGIO COMMON A LA RANGE-031088 More informationQuantity required : 1 |
||||||
|
26 |
B073492 COVER DE DISPOSITIF ELECTRIC More informationQuantity required : 1 |
||||||
|
27 |
B042802 SCREW M6X30 More informationQuantity required : 2 |
||||||
|
28 |
B074033 HORN More informationQuantity required : 1 |
||||||
|
29 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 2 |
||||||
|
30 |
WASHER ELASTIC (6, 4X11, 8X1) OEM PIAGGIO COMMON A LA RANGE-016406 More informationQuantity required : 2 |
||||||
|
31 |
NUT (M6) OEM PIAGGIO COMMON A LA RANGE-020106 More informationQuantity required : 2 |
||||||
|
32 |
B074905 MOBILE CHARGER WITH FLAP (UPGRADE) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/4/img/113354.jpg)
33 |
RELAIS OEM PIAGGIO THREE-WHEELER APE CALESSINO, CLASSIC 2006 >-B023727R More informationQuantity required : 1 |
||||||
|
34 |
SCREW TH (5X14) OEM PIAGGIO COMMON A LA RANGE-031057 More informationQuantity required : 1 |
||||||
|
35 |
003055-WASHER More informationQuantity required : 1 |
||||||
|
36 |
|
||||||
|
37 |
NUT M5 OEM PIAGGIO COMMON A LA RANGE-020105 More informationQuantity required : 1 |
